Specular Reflection: Controlling Glare on High-Gloss Paint

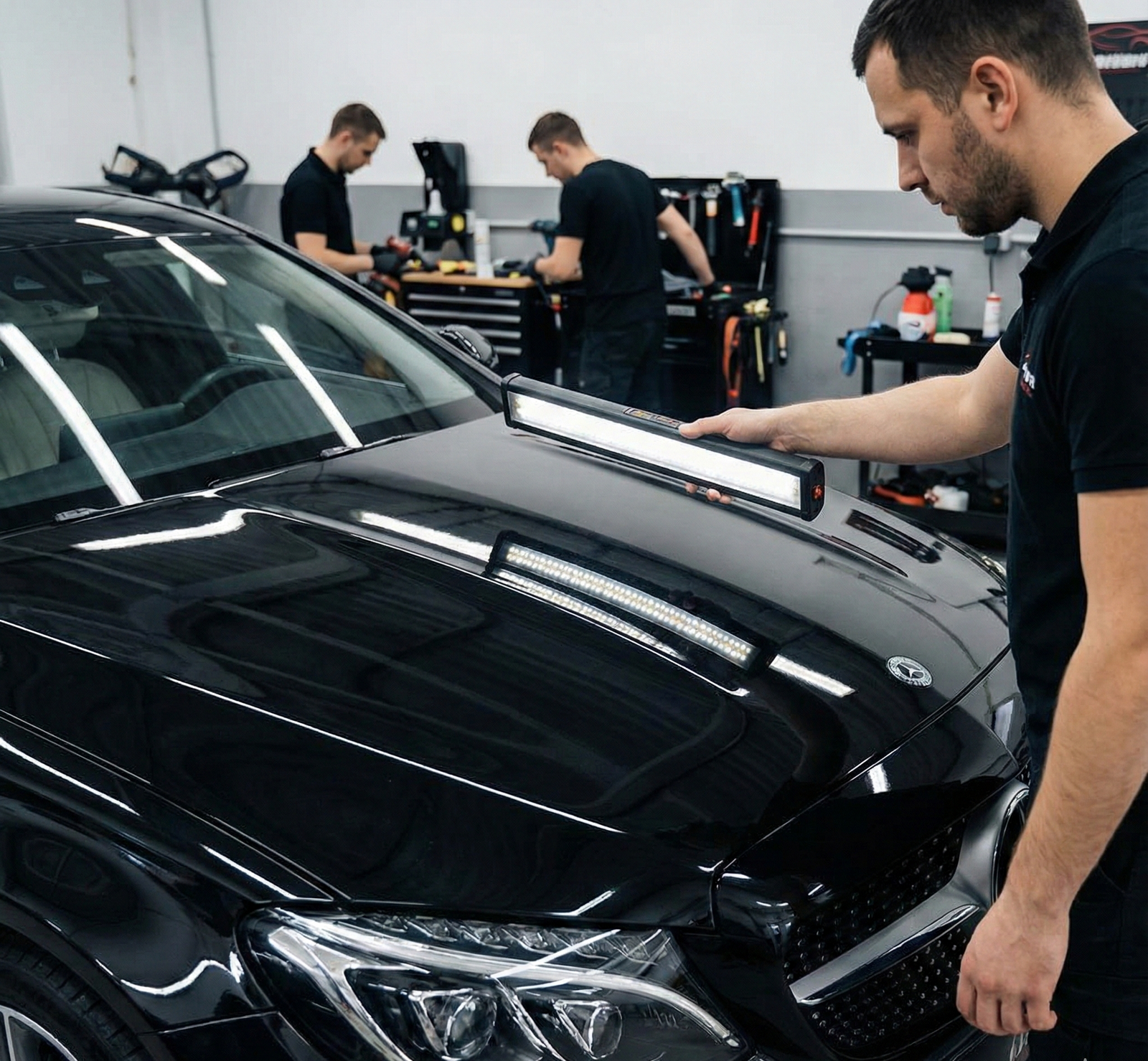

In professional automotive detailing, the ability to see is the ability to correct. The primary obstacle to achieving a level, defect-free finish is not the paint itself, but the optical phenomenon known as specular reflection. For professional detailers and technical enthusiasts, managing the "specular spike"—the concentrated reflection of a light source—is a prerequisite for identifying holograms, buffer trails, and micro-marring.
This article establishes a technical framework for controlling glare on high-gloss clear coats and fresh ceramic coatings. By applying optical principles, such as the 30-degree rule and multi-source diffusion, facility operators can transform a detailing bay from a high-glare environment into a high-precision inspection studio.
The Physics of Gloss and Reflection
To control light, one must understand its interaction with a surface. Automotive clear coats are designed to be highly specular. According to industry benchmarks, a perfect mirror possesses a gloss value of approximately 2,000 Gloss Units (GU) [5]. While automotive paint typically registers lower, high-end clear coats aim for maximum specularity to provide depth and "pop."
Specular vs. Diffuse Reflection
Light interacts with surfaces in two primary ways:
- Specular Reflection: Light from a single incoming direction is reflected into a single outgoing direction. This creates the "mirror effect."
- Diffuse Reflection: Light hits a rough surface and scatters at many angles.
When a detailer inspects paint, the goal is to reveal the texture and defects of the surface. However, a high-output, single-point light source—such as a traditional UFO (circular industrial) high bay—often creates a concentrated hotspot. This hotspot mirrors the light source perfectly, effectively "blinding" the technician to subtle defects located in the reflection zone.
The 20-Degree Measurement Standard
In coating science, gloss paints are typically measured at a 20° angle because they are normally viewed straight on [2, 6]. This steep angle of incidence is where specular reflection is most intense. In a detailing bay, light hitting the panel at these steep angles creates the most significant glare, masking the very scratches the technician is attempting to remove.
The Hotspot Problem: Why Single-Point Sources Fail
The most common error in detailing shop design is the reliance on raw lumen output from a single overhead point. While a high-lumen fixture provides ample light for a warehouse, it is counterproductive for paint correction.
The Contrast Paradox
Excessive glare reduces the visible contrast between the clear coat and the defect. When a light source is too concentrated, the reflected intensity overwhelms the eye's ability to perceive the slight variations in surface height that characterize a scratch or a "hologram" (fine circular scratches caused by improper polishing).
To solve this, the industry is shifting toward multi-source grid systems, such as hexagon lighting arrays. These systems distribute the total lumen load across dozens of smaller, diffused segments. This reduces the "lumen density" of any single point while maintaining high overall illuminance (measured in foot-candles or lux).
Strategic Placement: The 30-Degree Heuristic
Effective inspection requires light to be positioned so it reveals surface texture without becoming a mirror image. A critical heuristic developed by experienced practitioners is the 30-degree rule.
Implementation of the 30-Degree Rule
Technicians should position secondary light sources so the primary angle of incidence on the vehicle's side panels is between 25 and 35 degrees from the horizontal plane.
- Why 25–35 Degrees? This angle is steep enough to "catch" the edges of defects like orange peel (surface texture resembling an orange skin) but shallow enough to prevent the fixture from creating a blinding specular spike directly in the technician's line of sight.
- The "Light Wall" Concept: Instead of a single overhead light, professional bays often utilize a "light wall" configuration. This involves placing linear or hexagon grids on the ceiling and extending them down the upper portion of the walls. This creates a soft, uniform "pool" of light that wraps around the vehicle's contours.
Mounting Height and Density
For ceiling-mounted grids, density is more critical than raw power. A grid of lower-output tubes spaced 18–24 inches apart creates a more uniform light field than a few high-output fixtures spaced further apart. According to the 2026 Commercial & Industrial LED Lighting Outlook, project-ready shop lights must balance beam spread with mounting height to avoid "dark spots" between fixtures.
Modeling the Detailing Environment
To demonstrate the impact of a technical lighting layout, we modeled a standard high-end professional detailing studio. This scenario compares a traditional 400W metal halide setup with a modern LED hexagon grid system.
Modeling Note (Scenario Analysis): This model assumes a 30x24 ft detailing bay with 12 ft ceilings. The target illuminance is 88 foot-candles, aligned with the Illuminating Engineering Society (IES) recommendations for high-precision visual tasks.
Parameter Table: Detailing Bay Model
| Parameter | Value | Unit | Rationale |
|---|---|---|---|
| Bay Dimensions | 30 x 24 | ft | Standard professional studio size |
| Mounting Height | 12 | ft | Common ceiling height for car lifts |
| Target Illuminance | 88 | fc | IES RP-7 recommendation for inspection |
| Reflectance Profile | Bright | - | White walls/ceilings common in studios |
| LED System Watts | 150 | W | Per hexagon grid segment equivalent |
| Legacy System Watts | 458 | W | 400W Metal Halide + Ballast losses |
Quantitative Outcomes
Our analysis indicates that a 7-fixture hexagon grid layout provides the diffuse, multi-source illumination required to reveal holograms that a single UFO fixture would obscure. Furthermore, the economic transition is highly favorable.
- Annual Energy Savings: ~$1,035 (Based on 3,000 operating hours at $0.16/kWh).
- HVAC Cooling Credit: ~$53. Because LEDs emit significantly less infrared heat than metal halides, the air conditioning system does not have to work as hard to maintain a climate-controlled environment [3].
- Simple Payback Period: ~0.9 years. The system pays for itself in less than 12 months through energy and maintenance avoidance.
Color Accuracy and Inspection Standards
Light quantity is only half of the equation; light quality is the other. For detailing, two metrics are paramount: Color Rendering Index (CRI) and Correlated Color Temperature (CCT).
The Importance of High CRI
CRI measures how accurately a light source reveals colors compared to natural sunlight, which has a perfect CRI of 100 [9]. In detailing, a high CRI (typically >90) is essential for:
- Color Matching: Ensuring paint touch-ups match the original panel.
- Coating Uniformity: Spotting "high spots" or unevenness in ceramic coating applications.
CCT: 4000K vs. 5000K
The "color" of the light affects visual fatigue and defect visibility.
- 5000K (Daylight): Often preferred for final inspection as it mimics bright noon sunlight. It provides high contrast for white and silver cars.
- 4000K (Neutral White): Can be more comfortable for long polishing sessions on dark-colored vehicles, reducing the "blue light" strain on the eyes.
All professional fixtures should provide an IES LM-79-19 report, which acts as a performance "report card" verifying these metrics [16, 20].
Compliance and Safety Requirements
For a professional facility, "shop lights" must meet more than just aesthetic goals. They must comply with building codes and insurance requirements.
- UL 1598 Certification: This is the core safety standard for fixed luminaires in North America. It ensures the fixture will not pose a fire or electrical hazard under normal operation. Always verify the UL Solutions Product iQ Database for a fixture's file number [6].
- DLC Premium Status: The DesignLights Consortium (DLC) maintains a Qualified Products List (QPL). Products with "DLC Premium" status meet higher efficacy (lumens per watt) and glare control standards. Crucially, DLC certification is often a prerequisite for utility rebates, which can cover 40-70% of the upgrade cost.
- FCC Part 15 Compliance: Professional LED drivers must limit electromagnetic interference (EMI). Cheap drivers can interfere with shop radios, diagnostic tools, or wireless internet signals [60].
Operational Best Practices for Detailers
Installing the lights is the first step; using them as an inspection tool is the second.
The Dimming Advantage
Dimmability is not a luxury; it is a diagnostic tool. Practitioners often find that lowering the intensity to 50–70% can make subtle marring and deep scratches more visible. By reducing the overall reflectance of the panel, the contrast between the flat surface and the "valley" of a scratch is increased.
Maintenance and Lumen Depreciation
All LEDs lose brightness over time, a process measured by the IES LM-80-21 standard. In a detailing environment, dust and compound residue can accumulate on the fixtures, further reducing output. A semi-annual cleaning of the diffusers is recommended to maintain the designed foot-candle levels.
Summary of Technical Guidelines
To achieve a showroom finish, the lighting environment must be engineered with the same precision as the polishing process itself.
- Transition from point-source to grid-source to eliminate blinding hotspots.
- Adopt the 30-degree rule for side-panel lighting to reveal texture and orange peel.
- Prioritize >90 CRI to ensure accurate color assessment and coating application.
- Verify UL and DLC certifications to ensure safety and maximize return on investment through utility rebates.
- Utilize dimming controls to adjust contrast levels based on the paint color and defect type.
By controlling specular reflection, a detailing studio moves beyond simple "cleaning" and enters the realm of true paint perfection.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or architectural advice. Always consult with a licensed electrician to ensure installations meet the National Electrical Code (NEC) and local building regulations.
