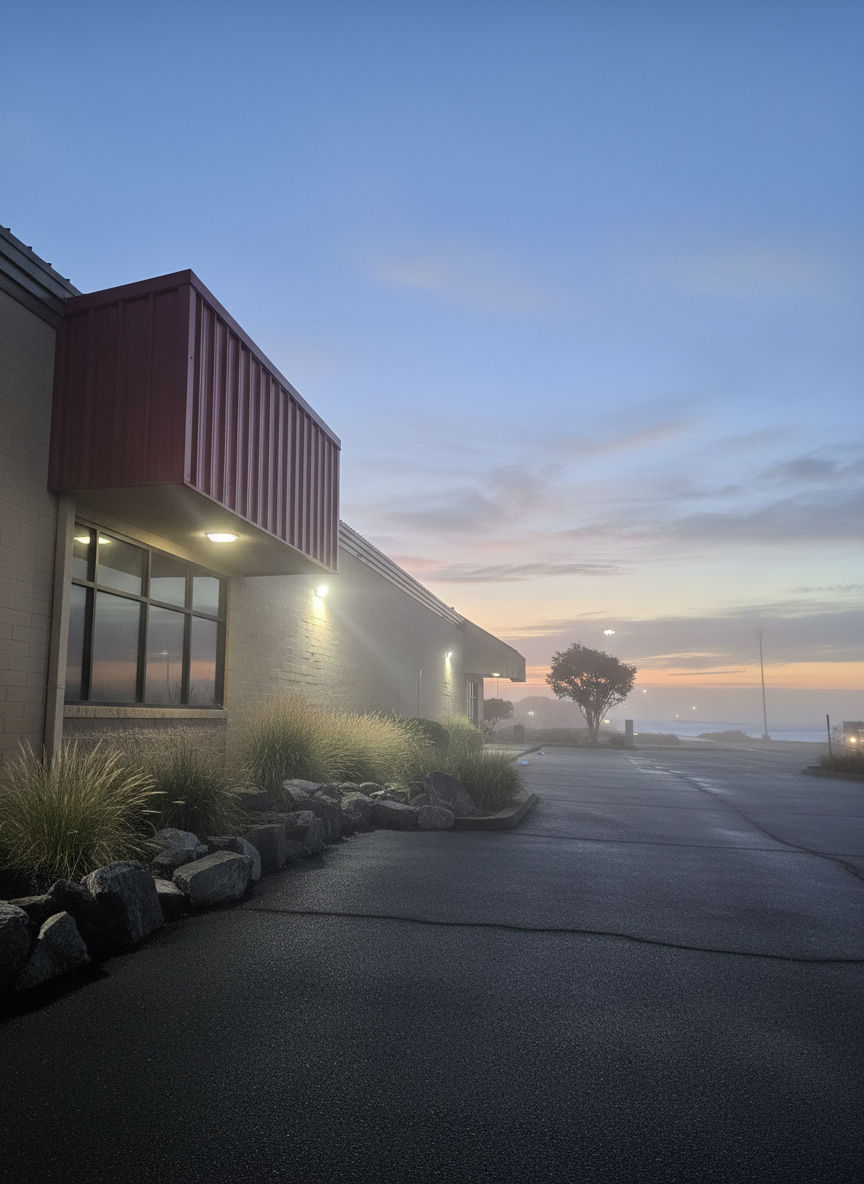

Coastal Perimeter Lighting: Preventing Salt Spray Corrosion
In coastal facility management, the primary technical decision regarding perimeter lighting is not lumen output or color temperature, but the selection of a material and coating system capable of surviving the C5 (Marine) corrosivity category. Standard exterior lighting fixtures, even those rated for "outdoor use," typically fail within 12 to 24 months when exposed to high-salinity environments. To ensure a 10-year service life in these zones, specifications must prioritize Type III hardcoat anodizing (MIL-A-8625), Grade 316 stainless steel fasteners, and downward-oriented conduit entries.
According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the shift toward "Solid" and "Reliable" lighting in harsh environments requires moving beyond basic Ingress Protection (IP) ratings to focus on chemical and atmospheric resilience.
The Invisible Threat: Salt Air Dynamics and Inland Penetration
A common misconception in property management is that salt spray corrosion is limited to "beachfront" properties. However, research indicates that salt air can penetrate more than 50 miles inland, depending on prevailing wind patterns and local topography. While the most aggressive "splash zone" effects occur within the first 3,000 feet of the shoreline, the atmospheric salt concentration remains high enough to cause significant pitting corrosion on aluminum and steel fixtures far beyond the sight of the ocean.
In these coastal microclimates, the mechanism of failure is rarely a single catastrophic event. Instead, it is a process of "crevice corrosion" and "pitting." Salt crystals accumulate in the microscopic pores of standard powder coatings. When evening humidity rises, these crystals rehydrate into a concentrated electrolyte solution that attacks the underlying metal substrate.
Methodology Note: Our inland penetration estimates are derived from common industry heuristics and meteorological patterns observed in coastal states (this is a scenario model, not a controlled longitudinal lab study).
Material Science: Beyond the IP Rating
While an IP66 or IP67 rating is essential for preventing water and dust ingress, it is critical to understand that these certifications do not correlate with corrosion resistance. The IEC 60529 (IP Ratings) standard tests for the physical entry of water under pressure, but it does not simulate the chemical attack of sodium chloride over time. A fixture can be perfectly watertight yet suffer total structural failure as the housing dissolves from the outside in.
Type III Hardcoat Anodizing (MIL-A-8625)
For coastal installations, standard marine-grade aluminum is insufficient if it lacks the proper surface treatment. We recommend specifying fixtures with Type III hardcoat anodizing. Unlike standard decorative anodizing, Type III creates a dense, ceramic-like oxide layer that is at least 25µm (1 mil) thick. This layer provides an extremely high level of surface hardness and chemical resistance.
According to MIL-A-8625 Standards for Anodized Finishes, this hardcoat must be properly sealed to prevent the "wicking" of salt ions into the aluminum pores. Without this specific treatment, even high-quality alloys will experience catastrophic pitting within 18 months of salt spray exposure.
The 316 Stainless Steel Requirement
The most frequent failure point in perimeter lighting is not the LED driver or the glass lens, but the mounting hardware. Zinc-plated or standard 304 stainless steel bolts will seize and corrode in a high-saline environment. We consider Grade 316 stainless steel (containing molybdenum for enhanced chloride resistance) to be non-negotiable for all fasteners, brackets, and mounting plates.
The Performance Hierarchy: LM-79, LM-80, and TM-21
When specifying LED wall packs for coastal perimeters, technical authority is built on verifiable data. Professionals should look for three specific IES (Illuminating Engineering Society) standards to validate the longevity of their investment.
- IES LM-79-19: This is the "performance report" of the fixture. It measures the total luminous flux, electrical power, and efficacy. For facility managers, this report confirms that the fixture delivers the light it claims while meeting ASHRAE Standard 90.1-2022 energy requirements.
- IES LM-80-21: This standard tests the LED chips themselves over 6,000 to 10,000 hours to measure lumen maintenance (how much light is lost over time).
- IES TM-21-21: This is the mathematical projection used to calculate the L70 life (the point at which the light output drops to 70% of its original value).
In coastal environments, heat dissipation is often compromised by salt crusting on heat sinks. Therefore, choosing a fixture with a high-rated L70 (e.g., 60,000+ hours) is vital to compensate for the accelerated thermal stress caused by atmospheric buildup.
Installation Discipline: Preventing "Salt Traps"
Expertise in coastal lighting extends to the physical installation. Even the most durable fixture can fail if the contractor creates a "salt trap" during mounting.
The Downward Conduit Rule
A common installer mistake is mounting the fixture with the conduit entry on the top or side. In coastal zones, gravity pulls salt-laden moisture down the conduit and directly into the connection compartment. The rule of thumb is to always orient the conduit entry downward or at a minimum 45-degree angle from vertical. This promotes drainage and prevents saltwater from pooling against the gaskets.
Mounting Angles and Drainage
Fixtures should be mounted with a slight intentional angle (typically 15–30° from horizontal) to ensure proper water runoff. Stagnant saltwater solutions trapped in crevices accelerate hydrolysis and coating degradation.
Logic Summary: Coastal Readiness Matrix
| Component | Standard Requirement | Coastal "Pro" Spec | Rationale |
|---|---|---|---|
| Housing | Powder-Coated Aluminum | Type III Hardcoat Anodized | Prevents pitting corrosion |
| Fasteners | Zinc-Plated / SS 304 | SS 316 (Molybdenum) | Prevents seizing and rust |
| Gaskets | Standard Silicone | High-Temp UV-Stabilized | Prevents hardening/cracking |
| Electronics | Standard PCB | Conformal Coated | Protects against humidity |
| Entry | Side/Top Conduit | Bottom/Downward Only | Prevents internal pooling |
Economic Impact: ROI of Durability vs. Replacement
For facility managers, the "Value-Pro" strategy is rooted in the Total Cost of Ownership (TCO). While a corrosion-resistant fixture may have a higher upfront cost, the labor expenses associated with replacing failed units in coastal areas are significant.
Case Study Model: The Cost of Corrosion Consider a facility with 20 perimeter wall packs.
- Standard Setup: Zinc-plated hardware and standard powder coating. Expected failure/maintenance cycle: 2 years. Estimated labor + lift rental for replacement: $150 per unit. Total cost over 10 years (5 cycles): $15,000.
- Pro-Grade Setup: SS 316 hardware and Type III Hardcoat. Expected service life: 10+ years. Total maintenance cost: $0 (excluding basic cleaning).
By investing in coastal-grade specifications, the facility avoids $15,000 in recurring labor and hardware costs, achieving a payback period often under 18 months when factoring in energy savings from high-efficacy LED drivers.
Compliance and Environmental Standards
Maintaining a "Solid" perimeter also means adhering to regional and national codes. In coastal regions, two standards are particularly relevant:
- DesignLights Consortium (DLC) Premium: To qualify for utility rebates, products should be listed on the DLC Qualified Products List (QPL). DLC Premium status often requires higher efficacy and better lumen maintenance, ensuring the fixture is built for long-term performance.
- California Title 24, Part 6: For properties in California, perimeter lighting must meet strict Title 24 Building Energy Efficiency Standards. This includes mandatory occupancy sensors and "full cutoff" optics to prevent light pollution (Dark Sky compliance), which is often a legal requirement in coastal ecological zones.
Maintenance Protocols for Coastal Longevity
Even the highest-rated IP66 fixtures require a maintenance schedule to reach their full potential. Salt is a persistent chemical agent that must be physically removed.
- Quarterly Cleaning: Use a soft brush and a solution of mild detergent with fresh water. This removes the salt crust that insulates heat sinks and degrades coatings.
- Avoid High Pressure: High-pressure washing can force salt particles past gaskets and seals. Always use a low-pressure rinse.
- Gasket Inspection: Expect to replace gaskets every 3 to 5 years. Constant UV exposure and thermal cycling in coastal sun will eventually cause silicone to harden and lose its elastic seal.
Summary of Technical Specifications for Coastal Procurement
When drafting a Request for Proposal (RFP) or specifying for a project, use the following technical callouts to ensure the fixtures meet the "Solid" and "Reliable" benchmark:
- Material: Die-cast aluminum alloy with Type III Hardcoat Anodizing per MIL-A-8625.
- Hardware: All external fasteners must be Grade 316 Stainless Steel.
- Sealing: IP66 minimum rating with UV-stabilized silicone gaskets.
- Electronics: LED driver must be FCC Part 15 compliant with 6kV surge protection.
- Certification: UL 1598 listed for wet locations and DLC 5.1 Premium certified.
- Optics: Full cutoff distribution to meet Dark Sky and Title 24 requirements.
By adhering to these rigorous standards, facility managers can secure their perimeters against both security threats and the relentless chemical attack of the coastal environment.
Disclaimer: This article is for informational purposes only and does not constitute professional engineering, legal, or financial advice. Coastal environments vary significantly; always consult with a licensed electrical contractor or lighting engineer to ensure compliance with local building codes and specific environmental conditions.
