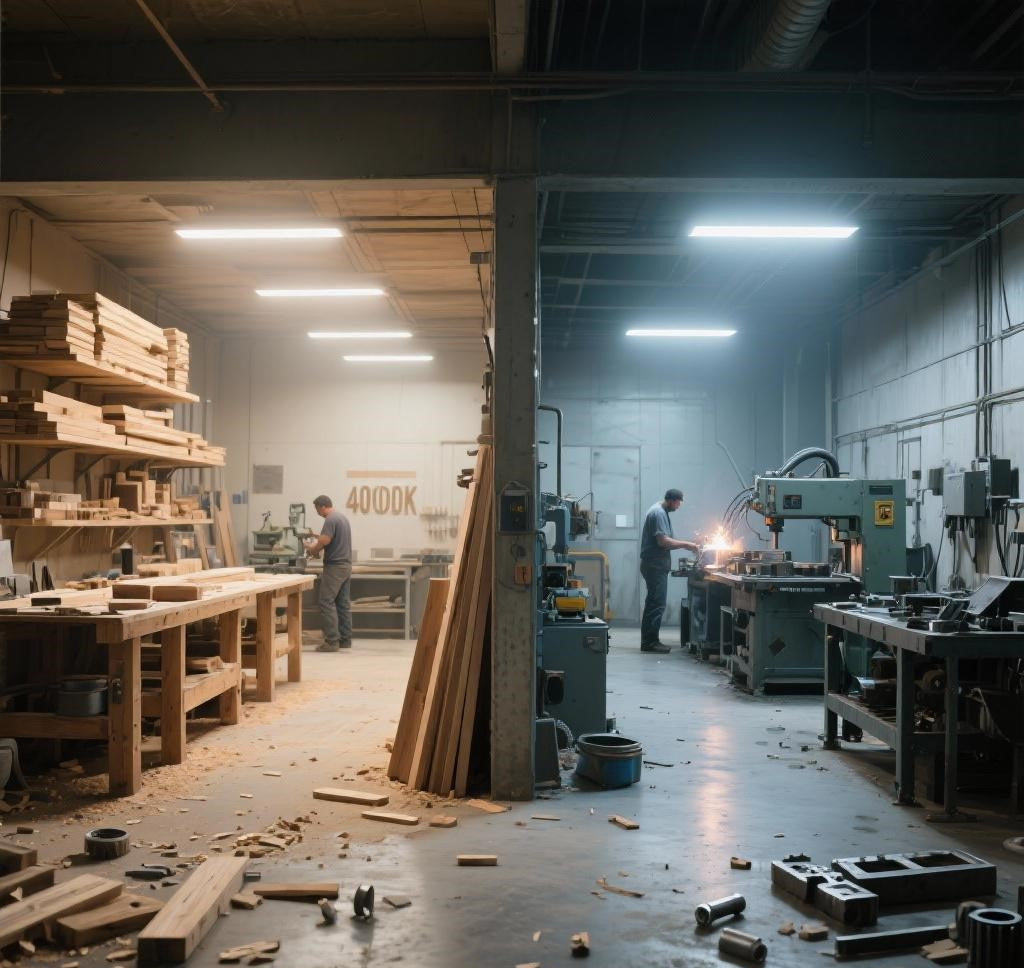

In precision environments like woodworking and metalworking shops, lighting is not merely a utility; it is a critical tool that dictates the accuracy of a cut, the quality of a finish, and the safety of the operator. The selection of a Correlated Color Temperature (CCT), measured in Kelvins (K), fundamentally alters how the human eye perceives depth, texture, and color. For most professional shops, the decision rests between 4000K (Neutral White) and 5000K (Daylight White).
The pragmatic choice for a high-performance workspace often hinges on the materials being processed. While 4000K is typically preferred for organic materials like wood to preserve warm tones, 5000K is favored in metal fabrication for its ability to enhance contrast on reflective surfaces. For mixed-use facilities, the most effective approach is utilizing fixtures with selectable CCT, allowing the lighting to adapt to shifting project requirements.
The Physics of Shop Lighting: CCT and CRI Standards
To understand why color temperature matters, one must look at the standards defined by the American National Standards Institute (ANSI) C78.377-2017. This standard defines the chromaticity specifications for solid-state lighting (SSL) products, ensuring that a "4000K" light from one manufacturer matches the visual output of another within specific tolerances known as MacAdam ellipses.
However, CCT is only half of the equation. The Color Rendering Index (CRI) determines how accurately a light source reveals the true colors of an object compared to natural sunlight. According to the IES LM-79-19 standard, which defines the electrical and photometric measurements of LED products, a high CRI (typically 80+ or 90+) is essential for tasks requiring color matching. In a workshop, a high lumen output without sufficient CRI will make fine details appear flat, leading to errors in stain matching or weld inspection.
| Lighting Metric | 4000K (Neutral White) | 5000K (Daylight White) |
|---|---|---|
| Visual Appearance | Balanced, "Clean" White | Crisp, "Cool" Daylight |
| Primary Application | Woodworking, Cabinetry | Machining, Welding, Auto Body |
| Contrast Level | Moderate | High |
| Psychological Effect | Focused but comfortable | High Alertness/Clinical |
| Material Synergy | Enhances Wood Grains | Highlights Metal Imperfections |
Woodworking: Why 4000K is the Professional Benchmark
For woodworkers, the primary challenge is the accurate assessment of grain patterns and the application of stains and finishes. Experienced woodworkers consistently report that 5000K lighting can introduce a subtle blue cast to natural wood, which often masks the subtle yellow and red undertones of species like Cherry, Walnut, or Mahogany.
The 4000K spectrum provides a neutral balance that aligns with the ANSI/IES RP-7 standard for industrial facilities, which emphasizes visual comfort and task performance. When matching a new stain to an existing cabinet, the 4000K range ensures that the "metamerism"—the phenomenon where colors look different under different light sources—is minimized.
Common Pitfall: The "Blue Cast" Error A common mistake in DIY shop builds is installing high-lumen "Daylight" (6000K+) bulbs under the assumption that brighter is always better. In a woodshop, this often results in a "clinical" glare that causes eye fatigue during long sessions of sanding or detailed carving. Furthermore, it can lead to over-staining, as the blue-heavy light makes the wood appear "colder" than it will look in a residential setting, which typically uses 2700K to 3000K lighting.
Metalworking and Machining: The 5000K Advantage
In metal fabrication and machining, the visual requirements shift from color accuracy to high-contrast detail. Metalworkers find 5000K essential for spotting fine cracks, tool marks, or weld inconsistencies on reflective surfaces. The cooler light increases the contrast between the polished metal and the shadows within a hairline fracture or a poorly penetrated weld.
For machinists operating Computer Numerical Control (CNC) equipment, 5000K lighting mimics the intensity of midday sun, which has been shown to improve alertness and reduce reaction times. According to research published in the Journal of Biological Rhythms, higher CCTs can influence alertness and cognitive performance, which is a critical safety factor when operating high-speed cutting tools.
Friction Point: Specular Reflection A significant mechanical issue in metal shops is "specular reflection"—the bright, mirror-like glint off polished steel or aluminum. While 5000K provides the necessary contrast, it must be paired with high-quality diffusers (as specified in LM-79 reports) to prevent "hot spots" that can cause temporary flash blindness or visual parallax errors when measuring with calipers.
The 750 sq. ft. Workshop Blueprint: Data-Driven Layout
To demonstrate the practical application of these principles, we analyzed a simulation of a 750 square foot (sq. ft.) professional shop (30' x 25') with 12-foot ceilings. The objective was to achieve a target illuminance of 75 foot-candles (fc), which is the recommended level for "Fine Detail" work according to DOE FEMP guidelines.
Quantitative Layout Analysis
Many users calculate their needs based purely on total lumens, often leading to a "lumen dump" that creates harsh shadows. For a 750 sq. ft. space, a common calculation (75 fc x 750 sq. ft. / 0.7 light loss factor) suggests roughly 80,000 total lumens. However, uniformity is more critical than raw brightness.
Our photometric simulation revealed that using four high-output fixtures (20,000 lumens each) creates significant dark spots in the corners and between workstations. The superior configuration is a 6-fixture grid (3x2 layout) using lower-wattage units (approx. 14,000–15,000 lumens each). This ensures that the Maximum Spacing (S_max) of approximately 14.25 feet is not exceeded, providing a uniform light curtain that eliminates dangerous shadows behind large machinery like table saws or drill presses.
| Configuration | Total Lumens | Uniformity (Max:Min) | Decision |
|---|---|---|---|
| 4 Fixtures (Corner-Heavy) | 80,000 lm | 4.2 : 1 (Poor) | Risk of shadows at workstations |
| 6 Fixtures (3x2 Grid) | 84,000 lm | 1.8 : 1 (Excellent) | Recommended for safety |
Economic Impact: ROI and Maintenance Savings
Upgrading to professional-grade LED lighting is an investment in operational efficiency. In our 750 sq. ft. shop scenario, replacing legacy 458W metal halide fixtures with 150W LED high bays (6 fixtures) resulted in a transformative Return on Investment (ROI).
Applying commercial electricity rates of $0.16/kWh and an operating schedule of 3,000 hours per year, the annual energy savings alone total $887.04. When factoring in maintenance avoidance—eliminating the need to rent lifts for bulb and ballast replacements—and the HVAC cooling credit (LEDs emit significantly less heat than HID lamps), the total annual savings reach $1,193.78.
Furthermore, by choosing products listed on the DesignLights Consortium (DLC) Qualified Products List (QPL), small business owners can often access utility rebates. In many jurisdictions, these rebates can cover up to $100 per fixture, reducing the payback period to less than nine months.
Compliance, Safety, and "Pro-Grade" Features
For a workshop to be truly professional, the lighting must meet rigorous safety and durability standards. This is where "Value-Pro" positioning separates reliable equipment from consumer-grade alternatives.
- UL 1598 Certification: Any fixture installed in a commercial or professional home shop should be UL Listed under the UL 1598 standard for luminaires. This ensures the housing, wiring, and thermal management are safe for permanent installation.
- IP65 Protection: Workshops are inherently dusty and, in the case of metalworking, may involve coolant mists. An IP65 rating, defined by IEC 60529, ensures the fixture is "dust-tight" and protected against water jets, preventing internal component failure over its 50,000+ hour lifespan.
- Flicker-Free Drivers: Cheap LED drivers often produce a stroboscopic effect (flicker) that is invisible to the naked eye but can cause headaches. More dangerously, flicker can make rotating machinery (like a lathe or saw blade) appear to be standing still or moving slowly—a phenomenon known as the stroboscopic effect. Professional fixtures utilize drivers that comply with FCC Part 15 to limit electromagnetic interference and ensure stable, flicker-free output.
Implementation Checklist for Your Shop
When planning your lighting upgrade, follow this expert-derived sequence to ensure optimal results:
- Determine Your Primary Material: Choose 4000K for woodworking or 5000K for metalworking. If your shop is mixed-use, prioritize CCT-selectable fixtures.
- Prioritize Uniformity: Use a grid layout (e.g., 3x2 or 4x2) rather than a few high-lumen "sun" fixtures. This reduces shadows and glare.
- Verify Compliance: Ensure fixtures are UL/ETL listed for safety and DLC-certified for rebate eligibility.
- Plan for Control: Consider 0-10V dimming. While you may want full brightness for tasks, the ability to dim the lights can reduce eye strain during non-precision activities or cleanup.
- Account for Mounting Height: For ceilings 12 feet and higher, UFO-style high bays provide the best beam spread. For lower ceilings, ensure the fixture has a wide beam angle (120°) to prevent "spotlighting."
Summary of Professional Recommendations
The choice between 4000K and 5000K is a functional decision that impacts the bottom line of a small business or the success of a DIY project. By grounding your choice in technical standards like LM-79 and ANSI chromaticity, and by prioritizing layout uniformity over raw lumen count, you create a workspace that is safe, efficient, and accurate.
For the woodworker, the neutral 4000K spectrum is the key to mastering finishes. For the metalworker, the crisp 5000K daylight is the lens through which precision is achieved. In either case, the shift to high-efficiency, professional-grade LED lighting offers a rapid ROI, often paying for itself in energy and maintenance savings within the first year of operation.
Disclaimer: This article is for informational purposes only. Electrical installations should be performed by a qualified professional in accordance with the National Electrical Code (NEC) and local building regulations. Always consult a licensed electrician before modifying your workshop's wiring.
