Your Garage, Perfectly Lit: Beyond Guesswork

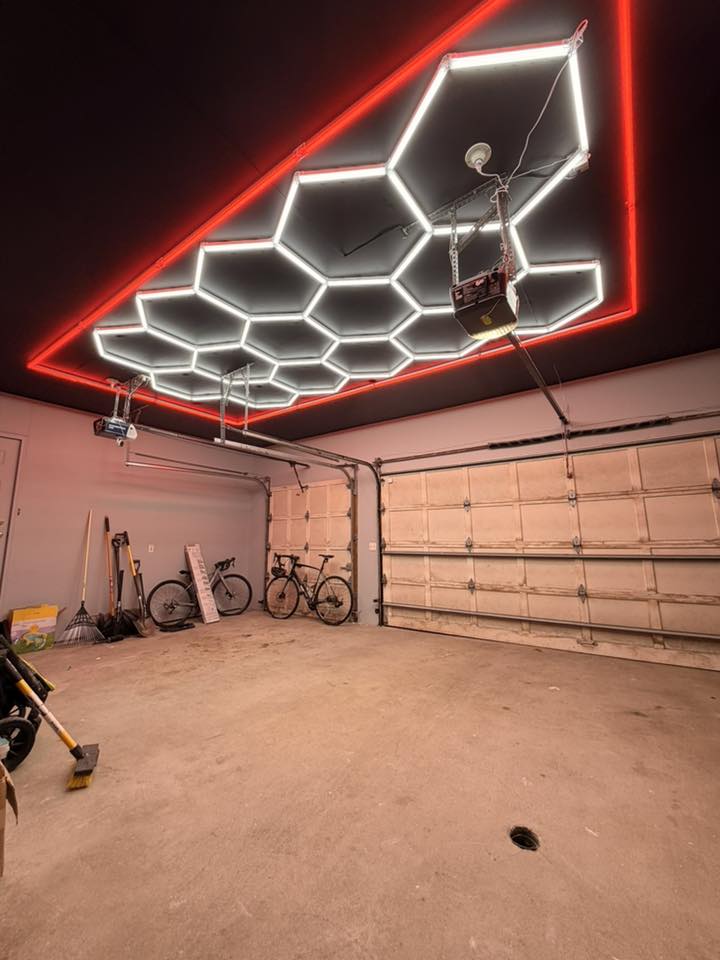

A poorly lit garage is more than just an inconvenience. It’s a space where details get missed, projects get frustrating, and the full potential of your workshop or showroom is lost in the shadows. You might have a high-performance car, a pristine workbench, or a serious home gym, but without the right light, it all falls flat. I’ve seen countless garages transformed from dim, uninviting caves into stunning, functional spaces with one key change: a well-planned hexagon LED lighting system.
The challenge? Figuring out exactly what you need. It’s tempting to just buy the biggest kit and hope for the best, but that often leads to wasted money, harsh glare, or frustrating dark spots. This guide removes the guesswork. We’ll walk through a simple, three-step formula to calculate the precise number of hex panels required to hit your desired brightness, turning your garage into the brilliantly lit, high-performance environment you’ve envisioned.
Step 1: Define Your Garage’s Mission
Before you can calculate how many panels you need, you must first decide what you’ll be doing under them. The brightness required for simple car storage is completely different from what’s needed for detailed automotive work. Lighting intensity is measured in lux (lumens per square meter) or foot-candles (lumens per square foot). For our purposes, we’ll use foot-candles (fc), a common standard in the US.
I used to get frustrated trying to find a dropped screw in a dim corner of my garage. The culprit wasn’t my eyesight; it was the single 60-watt bulb that was putting out less than 10 foot-candles at floor level. Getting the right light level for the task is the fix that makes a huge difference.
Here’s a simple guide to help you choose your target brightness. Most garages serve multiple purposes, so choose the highest level that applies to your most detailed task.
| Primary Garage Use | Recommended Brightness (Foot-Candles) | What It Feels Like |
|---|---|---|
| General Storage & Parking | 20-30 fc | A well-lit parking garage. Clear visibility for moving around. |
| General Workshop & DIY | 40-50 fc | Bright and energetic. Easy to read labels and find tools. |
| Auto Detailing & Painting | 60-80 fc | Intense, shadow-free light. Reveals every swirl and surface flaw. |
| Professional Mechanic's Bay | 80-100 fc | Clinical, daylight-level brightness for precision and safety. |
More Than Just Brightness: Color and Clarity
Two other quick factors are crucial for the quality of your light:
- Color Temperature (CCT): Measured in Kelvin (K), this determines if the light appears warm (yellowish) or cool (bluish-white). For a workshop or garage, you want to mimic daylight to keep you alert and render colors accurately. A CCT of 5000K to 6500K is an excellent choice. The consistency of these ratings across different products is governed by standards like ANSI C78.377, ensuring a "5000K" light looks the same everywhere.
- Color Rendering Index (CRI): This is a score from 0 to 100 on how accurately a light source reveals the true colors of an object. For general use, a CRI of 80+ is fine. But for automotive painting, detailing, or any color-critical work, a CRI of 90+ is non-negotiable. It’s the difference between seeing a perfect paint match and getting a surprise once you pull the car out into the sun.
Step 2: Calculate Your Total Lumen Requirement
Now that you know your target brightness, you can calculate the total light output (measured in lumens) your garage needs. This is where we put the numbers to work.
The Core Formula
-
Measure Your Space: Calculate the total square footage of your garage. Simply multiply its length by its width.
- Example: A standard two-car garage is 20 feet wide by 20 feet long, so its area is 20 x 20 = 400 square feet.
-
Calculate Base Lumens: Multiply your garage’s square footage by your target foot-candles from the table above.
- Formula: Required Lumens = Square Footage x Target Foot-Candles
- Example: For our 400 sq ft garage, we want a bright DIY workshop environment (let’s aim for 50 fc). So, 400 sq ft x 50 fc = 20,000 lumens.
This 20,000-lumen figure is our starting point. It’s the raw light output needed to hit our target. But in the real world, we need to account for a few more factors.
Debunking a Common Myth: "Package Lumens" Are Not Everything
A mistake I often see is people buying lights based only on the total lumen number printed on the box. They assume more is always better. In reality, how that light is distributed and its long-term performance are far more important. A system with extremely high "package lumens" but poor design can create uncomfortable glare, harsh shadows between panels, and significant light loss over time. The goal is even, consistent coverage, not just raw power. Standards like IES LM-80 are used to test how LEDs maintain their brightness over thousands of hours, which is a far better indicator of quality than initial lumen claims.
Step 3: From Lumens to Hexagon Panels
To get a professional and lasting result, we need to adjust our base lumen number to account for real-world conditions and then match it to the right product.
Factor in Real-World Light Loss
No lighting system is 100% efficient. Some light is absorbed by surfaces, lost through the diffusers that cover the LEDs, or diminishes as the fixture ages. A safe and professional approach is to add a 15-20% buffer to your base lumen calculation. This ensures your garage still meets your target brightness a few years down the line.
- Adjusted Lumen Calculation: Required Lumens x 1.2 = Final Target Lumens
- Example: 20,000 lumens x 1.2 = 24,000 lumens.
So, for our 400 sq ft workshop, we are looking for a hexagon light system that provides approximately 24,000 lumens.
Matching Lumens to Products
Now, you can confidently shop for a kit. Let's look at an example. The Hyperlite Hexagon Garage Lights Gen 2 - 5 Grid (7.3 x 5.1 ft) kit produces 15,840 lumens.
- Calculation: 24,000 (Required) / 15,840 (Per Kit) = 1.5 kits.
In this scenario, one 5-grid kit would leave you under-lit. The right move would be to either combine smaller kits to exceed your target or select a larger configuration. For instance, using two 5-grid kits would give you over 31,000 lumens, providing brilliant, future-proofed illumination with the option to add a dimmer for flexibility. Or, you could opt for a single, larger system like the Dimmable Hexagon Garage Lights Gen 2 - 14 Grid (12.5 x 7.3 ft) to cover a larger area from the start.
A Critical Note on Power and Safety
Here’s a "gotcha" that trips up many first-time installers: overloading the power source. Each hexagon system is designed with a maximum number of tubes that can be powered by a single input cable. For Hyperlite systems, this limit is 62 tubes (approximately 440W).
If your dream design requires more than 62 tubes, you must wire it with multiple, separate power feeds. Do not try to daisy-chain everything together from one plug. This prevents voltage drop, ensures consistent brightness across the entire grid, and avoids creating a fire hazard. For a detailed walkthrough on this, our guide on how to power and link multiple hexagon light kits is an essential read.
Furthermore, always ensure the components you buy are safety certified. Reputable products will have their components listed in databases like the UL Solutions Product iQ Database, which verifies they have been tested to rigorous North American safety standards.
Wrapping Up: Your Blueprint for a Brighter Garage
By following these steps, you can move past the guesswork and design a hexagon lighting system that is perfectly tailored to your space and your needs. Let’s quickly recap the key takeaways:
- Start with the Task: First, decide on the brightness level (foot-candles) you need based on how you use your garage.
- Do the Math: Calculate your base lumen needs by multiplying your garage’s square footage by your target foot-candles.
- Add a Buffer: Multiply your result by 1.2 to account for real-world factors and ensure lasting brightness.
- Choose Your Kit(s): Match your final lumen target to the right product configuration.
- Plan for Power: Respect the 62-tube limit per power feed to ensure safety and performance.
Investing a few minutes in planning will pay off for years to come with a garage that is not only functional and safe but also a visually stunning space you’ll be proud of.
Frequently Asked Questions (FAQ)
Can I dim my hexagon garage lights? Yes, but only with models specifically designed for it. Our Dimmable Gen 2 kits allow you to adjust brightness by quickly switching the power on and off. The light will remember the last brightness setting for the next time you turn it on.
What is the warranty on Hyperlite hexagon lights? Our hexagon lighting systems come with a 2-year limited warranty, ensuring peace of mind and long-term reliability.
How does ceiling height affect my lighting plan? Ceiling height is a critical factor. As a general rule, for every 2 feet of ceiling height above a standard 8-10 feet, you can expect the light intensity at floor level to decrease by 15-25%. For high ceilings (12ft+), you should compensate by choosing a system with higher lumen output or planning for a denser layout to maintain your target foot-candles.
What is the real difference between 4000K and 6500K light? 4000K produces a neutral white light, while 6500K produces a cool, crisp white light that is very close to natural daylight. For task-oriented spaces like workshops and garages, 6500K is often preferred because it enhances focus and visual acuity.
