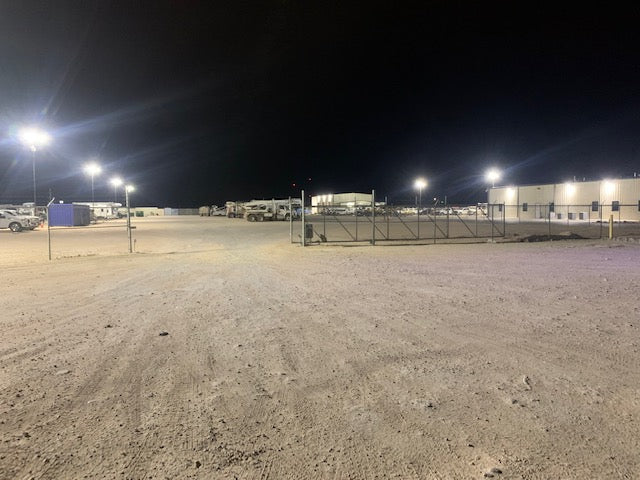

Effective outdoor security lighting goes far beyond installing the brightest fixture. True security is achieved through control—directing light precisely where it's needed and activating it only when necessary. By combining engineered floodlight beam patterns with automated photocell controls, facility managers can create an intelligent system that enhances safety, minimizes energy consumption, and eliminates nuisance light trespass.
This technical guide, developed by our engineering team at Hyperlite, outlines how to select the correct IES distribution types and integrate dusk-to-dawn photocells for a professional-grade security strategy. We focus on transitioning from static, "always-on" lighting to a responsive system compliant with modern energy codes and safety standards.
Photometric Distribution: Selecting the Right Tool
The foundation of any effective lighting plan is understanding how light is distributed. A floodlight's beam pattern, or photometric distribution, determines the shape of the light cast on the ground. Choosing the wrong pattern leads to "hot spots," deep shadows that compromise security, and light trespass that violates local dark-sky ordinances.
IESNA Distribution Types & Spacing-to-Height (S/H) Ratios
For area and security lighting, the most common distributions are Type II, Type III, and Type IV. These are standardized by the Illuminating Engineering Society (IES). A critical metric for contractors is the Spacing-to-Height (S/H) ratio, which serves as a heuristic for initial pole placement before performing detailed modeling with IES LM-63-19 data files.
| Distribution Type | Typical Application | Shape of Light | Practical S/H Ratio | Target Illuminance (IES G-1-16) |
|---|---|---|---|---|
| Type II | Walkways, narrow paths | Long, narrow oval | 1.5–2.5 | 0.5 – 1.0 fc (min) |
| Type III | Parking lots, roadways | Broader oval (forward throw) | 2.0–3.5 | 1.0 – 2.0 fc (avg) |
| Type IV | Building perimeters | Semicircular (sharp cutoff) | 1.0–1.75 | 2.0 – 5.0 fc (high security) |
Note: Foot-candle (fc) targets are based on general IES G-1-16 recommendations for "Medium" security levels. High-risk areas may require higher levels.
The "Lumen Myth" in Security
A common misconception is that higher lumen output equates to better security. In practice, uncontrolled brightness creates harsh glare, which reduces the "dynamic range" of security cameras and human eyes. An effective plan uses the correct beam pattern to deliver uniform light (a low Max-to-Min ratio), eliminating the deep shadows where intruders hide.
Automating Security with Photocells
Once the distribution is optimized, automation ensures the system is active only when required. A photocell (or dusk-to-dawn sensor) is a light-sensitive switch that manages the fixture based on ambient light levels.
- Energy Code Compliance: Modern standards like IECC and ASHRAE 90.1 often mandate automatic lighting controls for outdoor spaces.
- Rebate Eligibility: Automation is frequently a prerequisite for utility rebates. We recommend verifying fixtures against the DesignLights Consortium (DLC) Qualified Products List to ensure performance and eligibility.
Products like the Hyperlite LED Parking Lot Light - Zeus Series feature integrated NEMA-standard photocell sockets, allowing for easy field replacement and ensuring the sensor is tuned to the driver’s specific voltage requirements.
Technical Pitfalls & Field Fixes
Based on common patterns observed in technical support and field repairs, avoid these three critical installation errors:
- Self-Blinding (The Feedback Loop): If a photocell is mounted where the fixture's own light hits the sensor, it creates an oscillation (cycling on and off). Fix: Ensure the sensor is shielded or oriented toward the northern sky (in the Northern Hemisphere) to avoid both the fixture's output and direct solar glare.
- Twilight "Chatter": Rapid switching at dusk can damage LED drivers. Fix: Specify photocells with a "time delay" or "hysteresis" circuit (typically 3–10 seconds), which prevents the light from reacting to temporary shadows or lightning flashes.
- Environmental Ingress: Photocells are often the first point of failure in wet environments. Fix: Ensure the sensor assembly maintains an IP65 rating or higher as per IEC 60529. Check that the gasket is seated correctly during the "twist-lock" installation.
Field Case Study: Parking Lot Optimization
To illustrate the impact of proper beam control, consider this anonymous project data from a recent facility upgrade:
- Site: 45,000 sq. ft. commercial lot.
- Original Setup: 400W High-Pressure Sodium (HPS) "Cobra Heads" (Uniformity Ratio 12:1).
- New Setup: Hyperlite Zeus 150W (Type III distribution).
-
Results:
- Average Foot-candles: Increased from 0.8 fc to 1.6 fc.
- Uniformity Ratio: Improved to 3:1 (significant reduction in dark spots).
- Energy Consumption: Reduced by 64% via LED efficiency and photocell automation.
Professional Commissioning & Verification
Commissioning is the process of verifying that the installed system meets the design intent. For security lighting, this must be done after dark.
Field Commissioning Template
Contractors may copy this table for their project close-out documentation.
| Task | Verification Method | Pass/Fail |
|---|---|---|
| Photocell Logic | Cover sensor (day) / Flashlight (night) | [ ] |
| Orientation | Verify Type III/IV forward-throw is facing the lot | [ ] |
| Uniformity Check | Measure min/max fc at 10ft intervals | [ ] |
| NEC Compliance | Verify grounding and liquid-tight conduit (Art. 410) | [ ] |
| Surge Protection | Confirm SPD status indicator is "Green" | [ ] |
Aiming and Surge Protection Strategy
Proper aiming is critical. A common error is over-tilting a fixture to "reach" further, which causes glare. We recommend starting at a 0° tilt (parallel to the ground) and incrementing in 5° steps only if necessary.
For protection against atmospheric surges, ensure your system includes both circuit-level and fixture-level protection. The Zeus Series, for instance, includes 10kV surge protection as standard, which is vital for fixtures mounted on exposed poles—a topic we cover in-depth in our guide to mounting floodlights on poles vs. building facades.
Transparency & Standards Compliance
At Hyperlite, our technical content is reviewed by experienced lighting specialists to ensure accuracy. While we recommend our Zeus Series for its integrated controls and DLC Premium status, these engineering principles apply to any high-quality IES-rated system.
Key Standards Referenced:
- IES LM-63-19: Standard for electronic transfer of photometric data.
- ANSI C136.10: Standard for locking-type photocontrol devices.
- NFPA 70 (NEC): Specifically Article 410 regarding luminaires in wet locations.
Disclaimer: This article is for informational purposes only. Electrical work should be performed by a qualified and licensed professional in accordance with the National Electrical Code (NEC) and all applicable local regulations. Always consult a professional for your specific project needs.
Frequently Asked Questions (FAQ)
How high should I mount my security lights? Mounting height is determined by the required light density. As a rule of thumb, for a Type III distribution, space your poles at 2.5 to 3 times the mounting height to maintain IES uniformity standards.
Why is my dusk-to-dawn light flickering at night? This is usually caused by "optical feedback." Light from the fixture (or a nearby reflective surface like a glass window) is hitting the photocell. Reposition the sensor or add a light shield to isolate the photocell from the fixture's beam.
What is the difference between UL and DLC certification? UL (Underwriters Laboratories) is a safety certification (fire/shock risk). DLC (DesignLights Consortium) is a performance certification (efficiency/light quality). For commercial projects, you typically need both to ensure safety and qualify for energy rebates.
