Before ordering industrial light fixtures for a narrow service bay, make a labeled sketch and record the usable bay dimensions, lift and equipment envelopes, door travel, largest vehicle configuration, technician task points, photos, and existing power and controls. These inputs determine whether a proposed fixture location is physically usable and whether the project needs a site-specific layout review.
Use the completed packet to request a lighting layout or product review. It should describe the bay when empty, occupied, and operating. Dimensions alone cannot establish coverage, glare control, task performance, or electrical compatibility.
Start With a One-Page Narrow Bay Measurement Sheet for Industrial Light Fixtures
Start with the bay's usable geometry, then add every opening, level change, obstruction, operating condition, and piece of evidence a reviewer will need. Industrial lighting planning considers moving components and task areas in addition to general room dimensions, so the sketch should show how the space is actually used. The IES recommended practice scope supports this broader planning approach without defining one universal service-bay layout.
Before measuring, clear the bay as far as practical, identify the largest operating configuration, sketch the entrance and walls, and use feet and inches with clear labels. A commercial lighting measurement checklist can help organize the documentation.
| What to record | Value and units | Why it can change the order or review |
|---|---|---|
| Clear inside width and length | Feet and inches, measured between usable boundaries | Shows the actual working footprint instead of the nominal room size. |
| Mounting height, wall height, and ceiling changes | Feet and inches at each relevant location | Identifies low, uneven, or restricted mounting areas. |
| Door opening and surrounding hardware | Opening width and height, plus track, operator, and travel notes | Shows where a fixture, mount, or service path could interfere with door movement. |
| Floor, ceiling, and wall conditions | Level changes, beams, windows, cabinets, tools, and surface notes | Records restrictions that may not appear on a floor plan. |
| Lift and fixed-equipment fields | Positions, heights, operating states, and maintenance envelope | Creates a place to document constraints that change fixture location. |
| Vehicle and task fields | Largest vehicle configuration, access lanes, work points, and technician viewpoints | Connects the lighting request to the occupied work area. |
| Photo and electrical evidence | Labeled site photos, circuit information, controls, and fixture labels | Gives the reviewer evidence instead of assumptions about fit or compatibility. |
This is a practical intake sheet, not a code checklist or guaranteed fixture plan. Record dimensions wherever fixtures, mounts, wiring routes, doors, and service access may be restricted, not only at the center of the empty bay.

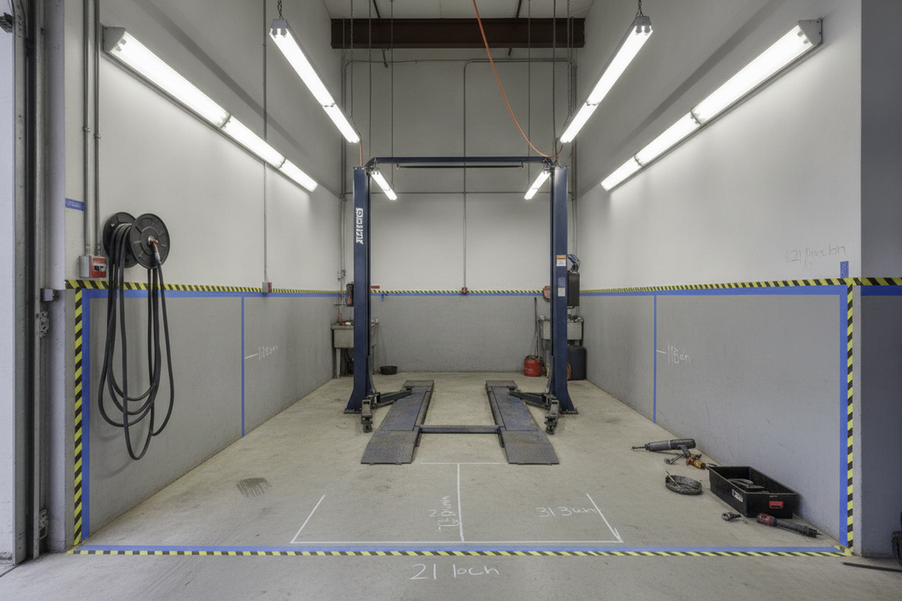

Measure the Lift, Equipment, and Door Clearance Envelope
The usable mounting envelope is the space left after fixed equipment, moving lift parts, door travel, and maintenance access are shown. Treat a low, uneven, or apparently open surface as a layout-review condition until its operating constraints are documented.
Record Lift and Fixed-Equipment Positions
Document the lift and equipment while they are in operation:
- Mark lift columns, arms, rails, cabinets, hose reels, beams, shelves, windows, and wall tools from fixed reference points such as the walls and entrance.
- Record the highest raised position and other overhead components, along with the vehicle movement area and access lanes.
- Show the space needed for fixture mounting, conduit or connection access, inspection, and maintenance.
- Note which dimensions change between an empty bay, a vehicle in position, and the lift's operating states.
For a bay with a vehicle lift, review the lift's operating and maintenance context before selecting fixture locations. OSHA's automotive-lift guidance points to manufacturer instructions and qualified site review as relevant to evaluating lift-related hazards. It does not approve a lighting layout or provide a universal fixture clearance number.
Trace Door Travel and Wall Obstacles
Use the sketch and photos to capture the full obstruction picture:
- Measure the door opening, panels, tracks, operators, and travel path. Include the position of the door when fully open and during movement if that changes the usable overhead space.
- Record wall height, surface conditions, cabinets, hose reels, windows, shelves, and wall-mounted tools that limit mounting or service access.
- Photograph the ceiling, beams, door hardware, walls, lift positions, and fixed equipment from several angles. Label each image so it matches a point on the sketch.
If door travel, lift movement, or equipment access changes the available mounting area, send the operating envelope for review rather than choosing a fixture by room dimensions alone. Apply the same approach to multiple narrow bays. Repeat the measurement sheet for each bay when walls, doors, lifts, or equipment differ.
Map the Largest Vehicle and Technician Task Points
A narrow service bay needs a map of the occupied work area, not just an empty-floor measurement. Use the largest relevant vehicle configuration and the viewpoints from which technicians actually work. This creates the right input for a narrow service bay lighting plan while keeping coverage and glare conclusions conditional.
Capture the Vehicle Envelope
Record the vehicle configuration that occupies the most relevant space:
- Measure its length, width, and height, including mirrors, open doors, raised hoods, or other changes that affect the envelope.
- Mark the vehicle centerline, wheel positions, lift position, and technician access lanes on the bay sketch.
- Note which dimensions vary by vehicle type, such as a car, van, or truck routinely serviced in the bay.
- Show parked and operating positions when the lift or equipment changes how the vehicle occupies the space.
This map helps separate a clear path beside the vehicle from a location that becomes blocked when doors, hoods, or lift components are in use.
Mark the Actual Work Points
Order the task map from the work areas that most often determine the layout to less frequent areas:
- Mark under-hood, side, front, rear, lift-level, underbody, and fixed-equipment work areas that apply to the operation.
- Mark where technicians stand and look, including positions beside, below, and at the ends of the vehicle.
- Identify blocked sightlines, reflective surfaces, and access lanes that a proposed layout should address.
- Note whether a portable work light is part of the workflow, without treating it as proof that fixed lighting will meet the task need.
Task points guide the review. They do not prove uniform coverage, eliminate shadows, or establish glare performance. ANSI/IES task-based lighting guidance provides planning context for mapping work areas and movement, not a guaranteed service-bay result. If you are comparing LED shop light options, use the completed vehicle and task map first. The collection is a browsing path, not evidence that a product fits this bay.
Verify Power and Send the Ordering Brief for Review
Finish the packet with documented electrical and control information, then request confirmation of fixture fit, mounting, clearances, controls, and missing information. Existing fixtures or product appearance cannot establish compatibility.
Document Existing Power and Controls
Record the available evidence without guessing:
- Circuit identification, documented or measured supply information, connection points, switch locations, and existing controls.
- Fixture, panel, driver, and control labels in clear photographs.
- Any stated control type or compatibility information in the existing documentation.
- Unusual conditions such as fuel-service activities, pits, depressions, or other features that may raise separate electrical-location questions.
Have the responsible electrical professional verify compatibility and installation requirements. OSHA's general-industry electrical rule also states that lamps used for general illumination must be protected from accidental contact or breakage by a suitable fixture or guarded lampholder. That rule is not a substitute for the NEC, local requirements, product documentation, or a site-specific electrical review.
Do not infer voltage, grounding, dimming, emergency or backup capability, sensor compatibility, or hazardous-location classification from a label photo or fixture appearance. For unusual service-bay conditions, ask the responsible electrical professional or authority having jurisdiction whether the site changes equipment requirements.
Package the Layout Request
Assemble the ordering brief in this order:
- Labeled bay sketch with clear width, length, mounting and wall heights, openings, level changes, and adjacent-bay conditions.
- Lift, fixed-equipment, door, and maintenance envelopes in each relevant operating state.
- Largest vehicle configuration, centerline, wheel positions, access lanes, technician viewpoints, and task areas.
- Labeled photos of the ceiling, walls, doors, equipment, lift, vehicle positions, existing fixtures, panels, and controls.
- Circuit, supply, connection, control, and fixture-label evidence, plus questions about missing information.
- A request for confirmation of fixture locations, mounting method, clearances, controls, and electrical compatibility before purchase.
Once the packet is complete, you can send a lighting simulation request or ask a qualified reviewer to assess the site. Keep the request conditional on the actual geometry and documented electrical information.
For a narrow service bay, the right first step before ordering industrial light fixtures is not choosing a fixture type. It is confirming that the measurement packet captures the full operating envelope and actual work points. Complete the sketch, photos, task map, and power record, then request a site-specific review before placing the order.
FAQs
These questions address common measurement and review decisions after you begin the site packet.
What measurements matter most in a narrow service bay lighting plan?
Start with clear inside width and length, mounting and wall height, door opening, lift and equipment envelope, largest vehicle, task points, photos, and existing power and controls. Put them on one labeled sketch first, then add the operating states that change the usable space.
How do I measure around a vehicle lift before ordering lights?
Measure lift columns and arms from fixed reference points, record the highest raised configuration, and show vehicle movement and maintenance access. Have the proposed fixture locations reviewed against the lift manufacturer's instructions and the site conditions before selecting mounts.
What should I photograph before asking for a lighting layout?
Photograph the ceiling, beams, door tracks and operator, walls, fixed equipment, lift positions, largest vehicle configuration, existing fixture labels, panels, and controls. Label every image to match the corresponding point on the sketch.
How can I tell whether existing power is ready for new bay lights?
Record the circuit identification, supply information, connection points, switches, controls, and fixture labels without inferring compatibility from appearance. The responsible electrical professional must verify compatibility and installation requirements before purchase.
When does a narrow bay need a different approach than an open service area?
Use a different layout review when lift movement, door travel, low or uneven ceilings, narrow width, or wall equipment changes usable mounting space or blocks task zones. In that case, submit the operating and task maps instead of relying on the empty-bay footprint.
