Uneven floor and wall reflectance changes how you should read a lighting plan. A layout's calculated results describe the surface reflectance values and task locations entered into the model. If a zone's real floor, walls, or partitions differ from those inputs, that zone's numbers may not describe what happens there, and a dark or light finish alone does not tell you which way or by how much.
To light the work area well, start by mapping each task zone and recording its actual surfaces. Then compare those notes with the plan's assumptions. If a zone's inputs are unknown or don't match, revisit the analysis for that zone before you add fixtures.
How Uneven Reflectance Affects a Lighting Layout
A lighting model is a prediction built on inputs, and room-surface reflectance is one of them. Reflectance is the share of light a surface sends back into the room. The software uses the values it's given for the floor, walls, and ceiling, so the output reflects those choices, not whatever finishes happen to be on site today.

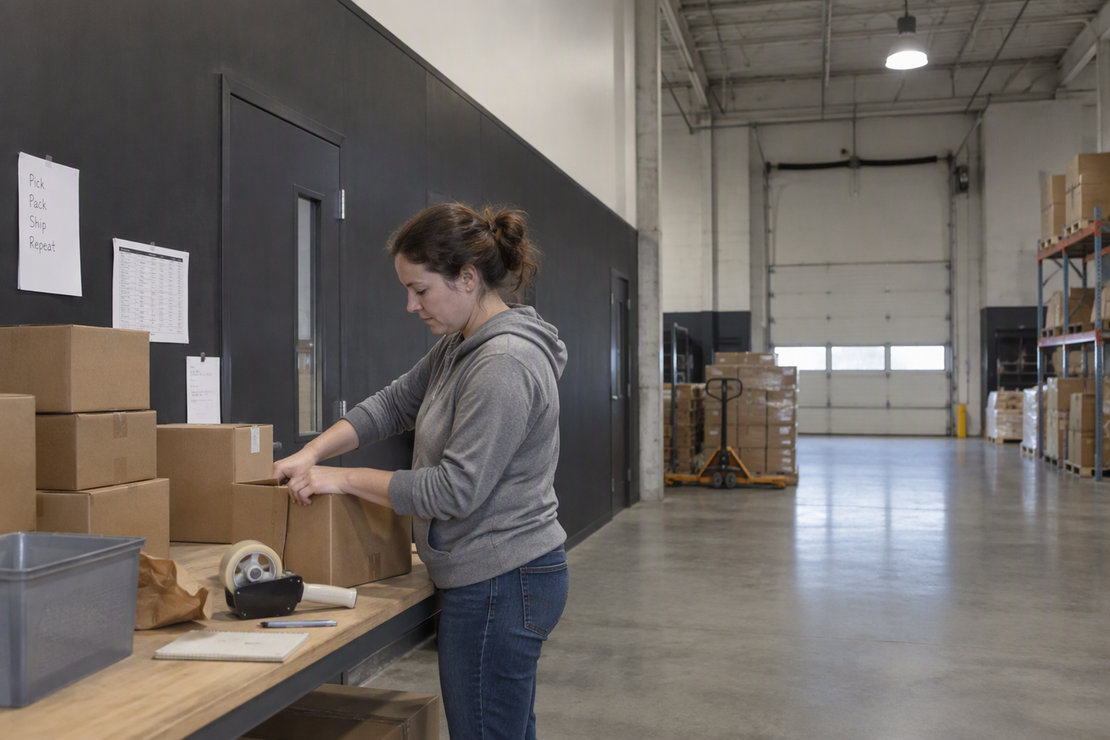

That matters most when a work area isn't uniform. Picture a packing station next to a dark partition, or a work zone on a different floor finish than the rest of the room. If the plan uses one shared set of surface values for the whole space, the result for that one zone shows the shared assumption, not the local condition.
A U.S. Department of Energy report on office lighting gives a useful example. In its Cook County office simulation, site-observed surface reflectances were assigned to room surfaces, and the modeled horizontal illuminance varied from one workstation to the next. Two points carry over. The surface inputs were tied to what was actually in the room, and the results were read by location rather than as one room-wide number.
The example does not show that reflectance alone caused the workstation differences. Fixture placement, distance, and task location all shape a point's result too. So one zone's result can't stand in for every zone, and a darker-looking corner is not a diagnosis by itself. The same location logic applies in warehouses, where rack labels can stay dark even when the floor reads bright.
Compare Actual Task-Zone Surfaces With the Plan
Work zone by zone: note what is really on each floor and wall, then line it up with what the plan assumed. Keep every observation attached to its task zone instead of describing the room as a whole.
Start by dividing the work area into the task zones you actually care about, such as assembly benches, a packing line, an inspection table, or a desk cluster. Label each one on a floor sketch and mark where the work happens. A task location is the spot the plan should be evaluating, so it needs a name you can match to the plan's calculation points.
Next, record the current floor, wall, and partition materials and finishes in each zone. Write down things like "sealed gray concrete," "dark fabric partition on the east side," or "white painted block wall." Add labeled photos. These notes document conditions; they are not reflectance measurements. If you are pulling this together for a designer, a lighting project brief keeps zone photos, measurements, and unknowns in one place.
Then ask for the plan's surface assumptions and their scope. You want the reflectance values entered for each surface and whether they apply to the whole room or to specific zones. If the layout was built by running IES files through a layout simulation, the surface values sit in the same model file, so the designer can usually report them directly.
With both sets in hand, mark each zone as a match, a mismatch, or unknown. A mismatch is a zone where the recorded finish clearly differs from what the plan represents. Unknown means the plan doesn't state an assumption for that surface, or you can't tell which zone it covers.
Avoid guessing reflectance values from color. If a zone needs real numbers, the lighting professional should choose the method. A DOE-hosted technical paper shows what a rigorous version looks like: in a controlled lighting simulation study, researchers measured room-surface reflectance, entered the measured materials and calculation points into the model, and compared predicted with measured illuminance at matched points. That was a controlled study, not a field procedure for facilities. Its useful lesson is the pairing: matched inputs and matched locations make a model-to-site comparison meaningful.
When to Revisit the Analysis Before Adding Fixtures
Revisit the affected analysis before changing fixture count when a task zone's surfaces differ from the plan's assumptions, when those assumptions are unknown, or when one shared value may not represent visibly different zones. This is a qualitative review trigger, not a numeric threshold or an automatic redesign.
| Site/plan finding | What to check before changing the layout |
|---|---|
| Zone surfaces differ from plan inputs | That zone's inputs and task-area results |
| Plan's surface assumptions unknown | Entered values and which zones they cover |
| One shared value spans distinct zones | Whether it represents each evaluated zone |
| Zone looks darker, inputs seem to match | Modeled vs. observed results at matched points |
Every row ends in a review, not a fixture order. A mismatch tells you the model may not describe that zone yet. It doesn't tell you the fixture count is wrong. The office example above tied surface inputs to observed materials and read results by workstation, which is the same scope a review should use: the affected zone, at its task location.
A shared assumption is not automatically a problem. Many zones may be close enough that one value represents them. The question for the designer is whether it represents the specific zone in question. Not every finish change needs its own number.
The last row is the trickiest. When the inputs look right but a zone still seems dim, compare what the model predicted with what is observed at the same task points before you decide. The controlled comparison of predicted and measured illuminance worked because both were taken at matched locations, so ask for the same pairing.
When you request lighting design support, send your zone-by-zone surface notes so we can recheck the affected task areas instead of the whole room. The outcome then feeds the larger one-for-one versus new layout decision with the surface question already settled.
FAQs
Can you judge a surface's reflectance just by looking at it?
No. Color and finish notes are useful records, but they aren't measurements. Two surfaces that look alike can be entered differently in a model. If a zone needs a real value, the lighting professional should pick the method.
Does every work zone need its own reflectance value?
No universal rule says so. One shared value can work when it represents the surfaces in each zone being evaluated. A separate input makes sense when a zone's floor, wall, or partition finish clearly differs from what the shared value represents.
Will a lighting model match the readings taken on site?
A model is a prediction from its inputs, not a site observation. Model and site results are only comparable when the surface inputs reflect the room and both are checked at the same task locations. Results may differ, so evaluate any variation zone by zone rather than assuming a fixed discrepancy.
What should be confirmed before adding fixtures to a dim zone?
Confirm the zone's actual surfaces, the surface values the plan used for it, and the modeled result at that task location. Verifying those inputs ensures the zone's analysis is rechecked on accurate grounds before considering layout changes. Looking darker is not enough on its own.
