Service Entrance Lighting: Map the Canopy-to-Door Transition

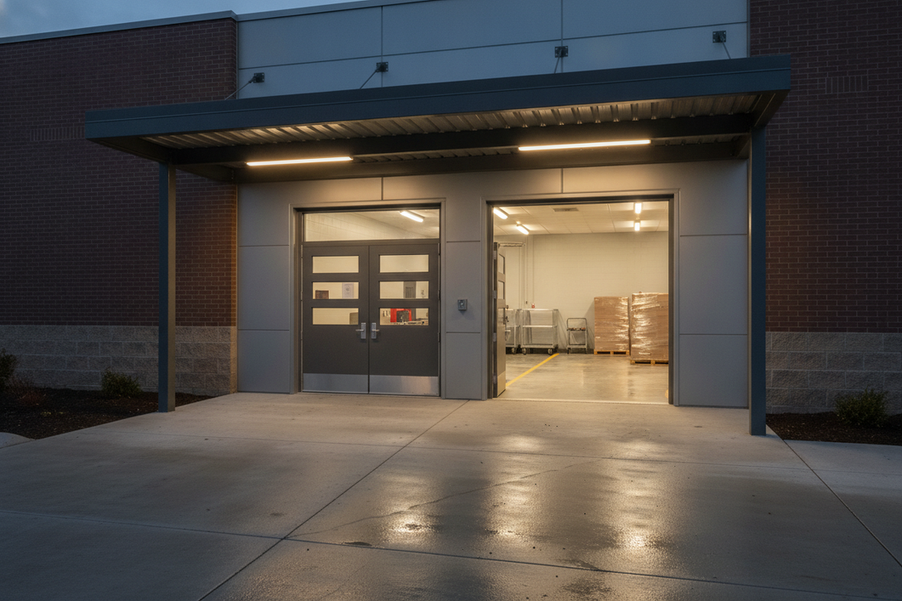

Trace the entrance as one visibility path before choosing a fixture: exterior approach, canopy underside, threshold, door face and hardware, then the first visible interior area. Put the primary role at the first unresolved gap—not automatically at the door or on the highest-lumen product. This five-zone method keeps commercial outdoor lighting focused on the actual transition.

Map the Service Entrance From Approach to Interior Before Choosing a Fixture

Start by walking the route people take and recording what is visible at eye level in each zone. The IES exterior-lighting framework treats pedestrian-oriented exterior lighting as a visual-design problem involving zones, glare, visual adaptation, uniformity, and building entrances—not just a lumen total.

Use these five zones in order:

1. Exterior approach: Follow the normal walking route toward the service door. Note the distance, direction, vehicle conflicts, obstructions, and the point where the entrance first becomes visible.
2. Canopy underside: Look for a shadow gap beneath the canopy, especially where the roof blocks daylight or existing exterior light. Record the available overhead mounting plane and any beams, ducts, signs, or sprinklers that affect placement.
3. Threshold: View the transition from outside and inside. Check whether the floor edge, step, sill, or immediate landing is distinguishable without a bright fixture shining directly toward the approach.
4. Door face and hardware: Inspect the door, handle, lock, signage, and swing area. A door that is visible from a distance may still have a poorly defined face or dark hardware at close range.
5. First visible interior area: Look beyond the door into the first interior space. Record whether the area is hidden, much darker, or much brighter than the threshold under the conditions when the entrance is used.

Mark the first place where visibility breaks, glare appears, an obstruction hides the path, or outside-to-inside contrast makes the next zone difficult to judge. Guidance for parking-structure entrances provides a limited analogy: changing brightness between a bright exterior and darker interior can affect visual adaptation, but it does not establish a universal service-door light level. DOE transition guidance is background context, not a service-entrance requirement.

For a broader commercial outdoor lighting project, you can also map the approach and entry zones, but keep this service-entrance walk focused on the first unresolved transition gap. That gap frames the fixture comparison in the next section.

Match the Primary Role for Commercial Site Lighting to the Canopy-to-Door Geometry

Choose the primary role only after the five-zone walk identifies the gap, mounting plane, sightline, and existing interior condition. Canopy-mounted lighting generally starts the comparison when the gap is under the canopy or at the threshold. Wall-mounted lighting may lead when the door face or approach is the problem, while supplemental area lighting is conditional for a longer or offset approach. No role is universally best without site geometry and relevant photometry.

For canopy lighting for service doors, treat the canopy fixture as a role to evaluate, not proof that the entire route is covered. The LED Canopy Light, Vega Series, 8450lumens, 5000K, AC 100-277V specification table lists 65W, 8,450 lumens, 5000K, AC 100-277V, IP65, UL/cUL, and a five-year warranty. The same product page also contains a 5,850-lumen description, so treat the lumen figures as conflicting page information that requires resolution in the current product documentation. Neither figure proves coverage, glare control, mounting suitability, or transition performance at a particular site.

A wall-mounted fixture can be the primary role when the door face or short approach is the first gap and the wall position has a clear relationship to that path. Compare specific wall-pack products using their current documentation, including distribution and intended mounting position, rather than assuming a wall-pack collection proves fit.

Use supplemental area lighting as secondary or fallback coverage when the approach extends beyond the canopy, turns around an obstruction, or shares space with vehicles. If one role addresses the threshold but another is needed for the approach, a combined layout may be appropriate as a site-planning judgment. Keep the roles separate in the review so added output does not hide a glare, spill, or interior-transition problem. DOE pedestrian-lighting research supports checking the fixture from the actual walking path and threshold sightline because pedestrian glare can reduce contrast in darker areas; it does not establish a universal mounting-angle rule. If the role remains unclear, pause before purchase and request a layout review.

Capture the Field Photos and Measurements That Settle the Layout

Build a field package for fixture evaluation around the checks named in DOE outdoor-area-lighting guidance: distribution, glare, light trespass, environmental rating, operating conditions, photometric reports, and intended mounting position. Use the package to show the entrance geometry and the conditions that affect the unresolved role.

• Approach views:
  • Photograph the full walking path from the normal approach direction.
  • Take an eye-height view toward the canopy and door, then a view back from the threshold toward the approach.
  • Include vehicle lanes, loading activity, signs, trees, equipment, and other obstructions that can change the sightline.
• Canopy and threshold views:
  • Photograph the canopy underside, door straight on, threshold from outside, and threshold from inside.
  • Show beams, pipes, soffits, recessed corners, reflective surfaces, and the available ceiling or overhead mounting surface.
  • Capture the entrance under the hardest relevant condition, such as daylight with a darker interior or nighttime operation with nearby fixtures on.
• Interior-transition views:
  • Photograph the first visible interior area beyond the door.
  • Show the first step, landing, aisle, equipment, or wall that a person needs to see after entering.
  • Note whether the interior light is on, controlled separately, shielded, or blocked from the approach.
• Measurements and mounting surfaces:
  • Record canopy depth and height, door width and swing, threshold dimensions, approximate approach distance, and the distance from the proposed fixture position to the door.
  • Identify wall, soffit, and ceiling mounting surfaces, along with obstructions and vehicle or work zones.
  • List existing fixtures that will remain, including their locations and operating conditions. Treat wattage and lumen figures as product inputs, then rely on distribution and intended-position review for the coverage judgment.
• Glare, spill, and obstruction notes:
  • Mark any fixture position that is directly visible along the walking path or through the doorway.
  • Note light that could enter adjacent work areas, neighboring property, driver sightlines, or occupied rooms.
  • Identify dark hardware, reflective finishes, recessed doorways, overlapping fixture roles, and any point where the path cannot be judged confidently.

Finish the package with a simple path sketch labeled approach, canopy, threshold, door face, and first interior area. Add one sentence naming the unresolved choice, such as “Canopy lighting addresses the threshold, but the offset approach remains unverified.” For an unresolved layout, request photometric test reports and an intended-position review before relying on a final fixture choice. A threshold-visibility checklist can help organize a related service-area site walk, but it does not replace project-specific review.

Escalate the Layout When the Transition Cannot Be Verified

Pause final fixture selection when the geometry cannot show which position addresses the first gap. Request a review if the proposed wall or canopy fixture is viewed directly along the approach, the canopy depth or mounting plane is unknown, the door is recessed or offset, two roles overlap at the doorway, vehicles share the approach, glare or spill cannot be judged, or the first interior area is hidden. These are prudent planning boundaries, not code or legal requirements. Professional entrance-design guidance can provide background for a coordinated review, but it does not establish universal commercial requirements. The VA Lighting Design Manual is cited here only as that limited professional context.

Send the labeled photos, measurements, path sketch, existing-fixture details, operating-hour or control needs, candidate product documentation, and the exact unresolved decision to a qualified lighting designer, electrician, or project support team. Ask them to assess distribution, coverage, mounting constraints, glare, spill, and the outside-to-inside transition in the intended position. A generic model suggestion is not a substitute for that geometry review.

When technical terms are part of the disagreement, understand light-measurement terms before comparing documents, while keeping the final judgment tied to the actual site and fixture photometry. Assign a primary fixture only where the approach-to-interior path is visible in the evidence, and pause selection when the gap cannot be shown.

Service Entrance Lighting FAQs

Start with the mapped visibility gap and the site package when applying these answers. The role split remains conditional on the approach, mounting position, glare, and transition evidence.

What lighting is best for a covered service entrance?

Start with the zone that fails first. Use canopy coverage as the starting role for an under-canopy or threshold gap, wall coverage for a door-face gap, and a separate area-lighting review for a long or offset approach. Photograph the first interior area before increasing exterior output.

Should a service door use a wall pack or canopy light?

Compare the mounting plane with the actual approach sightline. Choose the role that can address the door and the first unresolved gap without leaving a canopy shadow or creating direct-view glare. If the approach extends around an obstruction, treat it as a separate supplemental-area question.

How do you light the transition from outside to inside?

Follow the visible path through the approach, threshold, door hardware, and first interior step. If glare, contrast, or an obstruction prevents a clear judgment, document both directions and request a review instead of assuming that more exterior output will solve the transition.

What should I photograph before choosing service entrance lighting?

Capture the approach, canopy underside, door from both directions, threshold, and first interior area. Add canopy and door dimensions, mounting surfaces, obstructions, existing fixtures, glare and spill notes, a path sketch, and the specific fixture-role question you need answered.
