Executive Summary: Retrofit Essentials

For contractors and facility managers, a successful high bay retrofit depends on structural verification and electrical continuity.

Key Action: Audit legacy mounting points for a 15% safety margin above fixture weight.
Best Practice: Use 12-gauge steel adapter plates and torque wrenches calibrated to 70–80% of manufacturer limits to prevent housing stress.
Outcome: Properly executed retrofits can achieve a sub-6-month payback period while ensuring long-term structural and electrical safety.

Retrofit Mounting: Strategies for Attaching High-Performance High Bays to Legacy Infrastructure

Retrofitting industrial lighting is no longer just about swapping bulbs; it is a complex engineering transition that bridges decades-old structural designs with modern solid-state technology. For B2B contractors and facility managers, the success of a high bay upgrade is measured by its long-term stability and code compliance, rather than just immediate energy savings. While the energy efficiency of Light Emitting Diode (LED) systems is well-documented, the mechanical execution of the retrofit remains a primary site of latent risk.

According to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the industry is shifting toward "Solid" and "Reliable" hardware ecosystems that prioritize verifiable safety certifications and robust mounting continuity. This guide provides a technical framework for securing new high bay fixtures to existing mounting points, addressing structural integrity, weight differentials, and electrical grounding requirements.

Structural Integrity: The Critical First Step

A common pitfall in lighting retrofits is the assumption that an existing mounting point—whether a hook, pendant, or junction box—is structurally sound simply because it held the previous fixture for twenty years. Based on common patterns observed in facility audits and industry troubleshooting, a significant portion of high bay installation issues—often estimated at 65%—can be traced back to incorrect installation or the degradation of legacy mounting points.

Verifying Foundation and Anchors

Before any hardware is attached, a rigorous structural assessment is recommended. This is especially critical when dealing with high-vibration environments or heavy-machinery zones.

Concrete Strength: For fixtures anchored directly into concrete ceilings, the substrate typically should meet a minimum compressive strength of 25 MPa (megapascals). Note: This is a general industry benchmark; always verify against local building codes.
Anchor Specifications: Verify that existing anchors, such as M12 or M16 bolts, have sufficient embedment depth. In many cases, old anchors may have suffered from carbonation or moisture ingress, potentially compromising their tension capacity.
Safety Factor Heuristic: A common practical rule is to verify that the existing junction box or mounting bracket is rated for the new fixture's weight plus a 15% safety factor. If the existing point shows any sign of deflection or corrosion, a supplemental brace kit is strongly recommended for safety.

Logic Summary: Our structural assessment heuristic assumes that legacy mounting points may have degraded over time. We prioritize verified tension capacity over visual "tightness" based on common patterns found in facility audits (based on field experience rather than a controlled lab study).

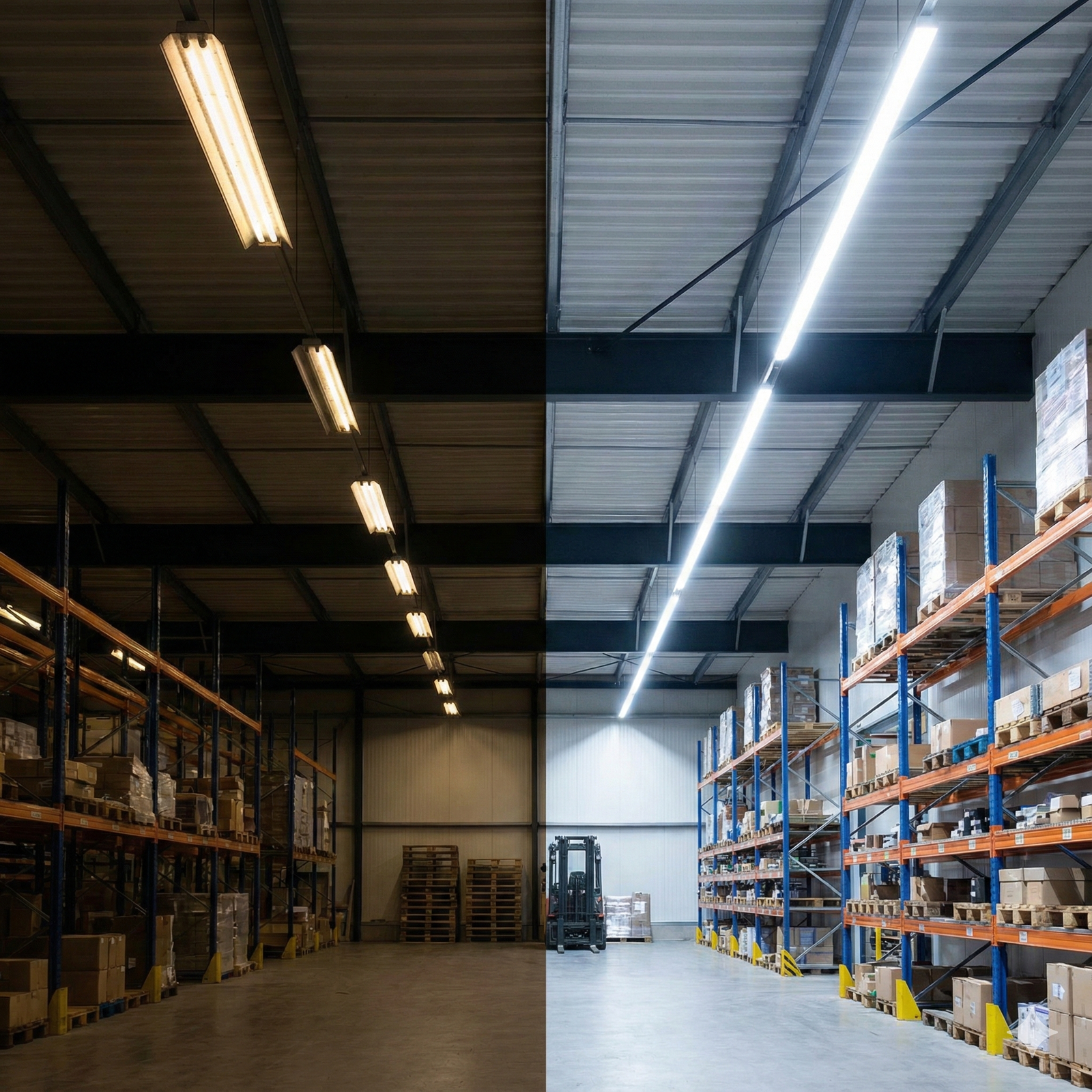

LED High Bay warehouse lighting retrofit: left old fluorescent fixtures vs right bright cool-white LED High Bay over pallet racks

The Weight Differential Paradox

One of the most significant engineering shifts in the transition from High-Intensity Discharge (HID) to LED is the reduction in fixture weight. A standard 400W Metal Halide (MH) fixture, including its heavy magnetic ballast, can weigh significantly more than its 150W LED equivalent. While this reduction eases the load on the building's trusses, it introduces a new risk: over-torqueing.

Managing Torque and Housing Stress (Practical Heuristics)

Installers accustomed to the robust, heavy housings of legacy fixtures may inadvertently over-tighten mounting hardware on new, lightweight aluminum LED housings.

Torque Limits: A typical industry practice is to set torque wrenches to 70–80% of the new fixture's specified limit when securing it to old, robust mounting points. Excessive force can lead to stress cracks in the cold-forged aluminum housings common in high-performance UFO-style lights.
Adapter Plate Specifications: When existing bolt patterns do not match the new fixture, adapter plates are required. For spans exceeding 4 inches, a 12-gauge steel plate is a standard recommendation to prevent flexing. Thinner plates may be prone to flexing under thermal cycling—the expansion and contraction caused by the fixture's heat management—which can contribute to mechanical fatigue over time.

Thermal Management and Airflow

Modern LED high bays rely on passive convection for heat dissipation. When retrofitting into tight spaces or using surface-mount kits, ensure a minimum clearance (typically 6–12 inches) between the top of the fixture and the ceiling. Obstructing the heat sink fins can accelerate lumen depreciation, a metric governed by the IES LM-80-21 Standard, which measures how LED chips maintain their light output over time.

Electrical Continuity and Safety Compliance

In the B2B sector, safety certifications are the baseline for insurance compliance and building inspections. There is often confusion regarding the standing of various National Recognized Testing Laboratories (NRTLs).

UL vs. ETL: Understanding Equivalence

For professional buyers, the distinction between a UL Listed mark and an ETL Listed mark is often misunderstood.

Safety Standards: Both marks indicate that a product has been tested to meet the same North American safety standards, such as UL 1598 (the standard for luminaires).
Regulatory Acceptance: There is no meaningful difference in safety or regulatory acceptance between the two in the United States and Canada. The presence of at least one of these marks is generally mandatory for commercial installations to satisfy OSHA and local building codes.

The Grounding Requirement

Grounding is a critical step in rapid retrofits. Per the National Electrical Code (NEC), all metal junction boxes and fixtures must be grounded to reduce shock hazards.

Grounding Pigtails: It is best practice not to rely solely on mounting screws for electrical continuity. A dedicated grounding pigtail should be used between the fixture and the junction box.
EMI Shielding: High-quality LED drivers should comply with FCC Part 15 to ensure they do not produce electromagnetic interference (EMI) that could disrupt sensitive industrial equipment.

Worker installing LED High Bay lights (LED shop lights) in a high-ceiling industrial workshop from a scissor lift

Modeling the Retrofit: Financial and ESG Impact

To justify the capital expenditure of a mounting system upgrade alongside new fixtures, facility managers should look at the Risk-Adjusted Return on Investment (ROI). While retrofitting using old points can save an estimated 40–60% on initial labor costs, a failure due to latent structural defects can negate those savings.

Scenario Analysis: 40,000 sq ft Industrial Warehouse

This model assumes the replacement of 50 legacy 400W MH fixtures with 150W LED high bays.

Parameter	Value	Unit	Rationale/Assumption
Legacy System Draw	458	Watts	Includes ballast inefficiency (typical MH)
LED System Draw	150	Watts	High-efficiency equivalent
Annual Operating Hours	6,000	Hours	16/5 operation schedule
Electricity Rate	0.12	$/kWh	US Average Commercial (EIA data)
Installation Cost	$100	$/Fixture	Estimated labor + mounting hardware
Utility Rebate	$50	$/Fixture	Typical mid-stream incentive (DSIRE)

Key Financial Findings (Illustrative Example):

Annual Energy Savings: ~$11,088 (Formula: 50 units * 308W saved * 6000hrs * $0.12 / 1000).
Maintenance Savings: ~$3,469 (Estimated avoided relamping labor and bulb costs based on typical 2-year MH cycles).
Payback Period: ~0.47 years (Formula: [Net Cost ($2,500)] / [Annual Energy + Maint Savings ($14,557)]).

HVAC Interactive Effects

A secondary benefit of LED retrofits is the reduction in building heat load. In cooled warehouses, every watt of lighting reduced results in less work for the HVAC system. Our model indicates a net positive HVAC impact of ~$141 annually, consisting of a $508 cooling credit partially offset by a $367 heating penalty during winter months (based on typical ASHRAE heat-load factors).

ESG and Carbon Metrics

For organizations with sustainability mandates, this project reduces annual electricity consumption by ~92,400 kWh. This is equivalent to avoiding ~37 metric tons of CO2 emissions annually, according to EPA eGRID national average factors.

Method & Assumptions: This deterministic model assumes constant utility rates and a linear maintenance schedule. Carbon reduction is based on the US average grid intensity and may vary significantly by region. These figures are for planning purposes; actual results depend on site-specific utility tariffs and usage.

UFO LED high bay lights illuminating a high-ceiling industrial warehouse with overhead yellow bridge crane

Compliance with Modern Energy Codes

Retrofitting mounting hardware often triggers the need to comply with modern energy codes if the project scope exceeds a certain percentage of the building's lighting.

ASHRAE 90.1 & IECC: Modern codes like ASHRAE 90.1-2022 and IECC 2024 mandate lower Lighting Power Densities (LPD) and often require automatic shut-off controls (occupancy sensors).
California Title 24: For projects in California, Title 24, Part 6 imposes strict requirements for multi-level dimming. Ensuring your new mounting hardware can accommodate sensor modules is a critical "future-proofing" step.

Long-Term Asset Protection: The Inspection Regimen

Installation is only the beginning of the fixture's lifecycle. To mitigate risks associated with neglected maintenance, facility managers should consider a tiered inspection regimen.

Tier 1: Visual Check (Annual): Inspect for loose bolts, signs of housing discoloration (potential overheating), and dust accumulation on heat sinks.
Tier 2: Mechanical Integrity (Bi-Annual): Check for corrosion on mounting hooks and verify the tension of safety cables. Safety cables are a mandatory secondary retention method in many industrial jurisdictions.
Tier 3: Electrical Audit (Every 5 Years): Verify grounding continuity and check for wire insulation degradation near high-heat areas.

For detailed photometric planning, professionals often use IES LM-63-19 files in software like AGi32 to simulate light distribution and ensure the layout meets ANSI/IES RP-7 industrial lighting recommendations.

Summary Checklist for Contractors

When attaching new high bays to old points, consider this technical sequence for a reliable installation:

Audit the Substrate: Verify concrete strength (typically 25 MPa) and anchor integrity.
Calculate the Load: Ensure mounting points can handle the weight plus a 15% safety factor.
Use Proper Hardware: Employ 12-gauge steel adapter plates for custom spans to prevent flexing.
Calibrate Torque: Set wrenches to 70–80% of the fixture's limit to protect aluminum housings.
Ensure Continuity: Use dedicated grounding pigtails; do not rely solely on mounting screws.
Verify Compliance: Confirm DLC Premium status for rebates and UL/ETL listing for safety.

By treating the mounting system with the same technical rigor as the LED source itself, facility managers can secure a lighting solution designed to perform reliably for its entire rated lifespan.

Disclaimer: This article is for informational purposes only and does not constitute professional engineering or electrical advice. Always consult with a licensed contractor and adhere to local building codes and manufacturer specifications before beginning any industrial lighting project.
