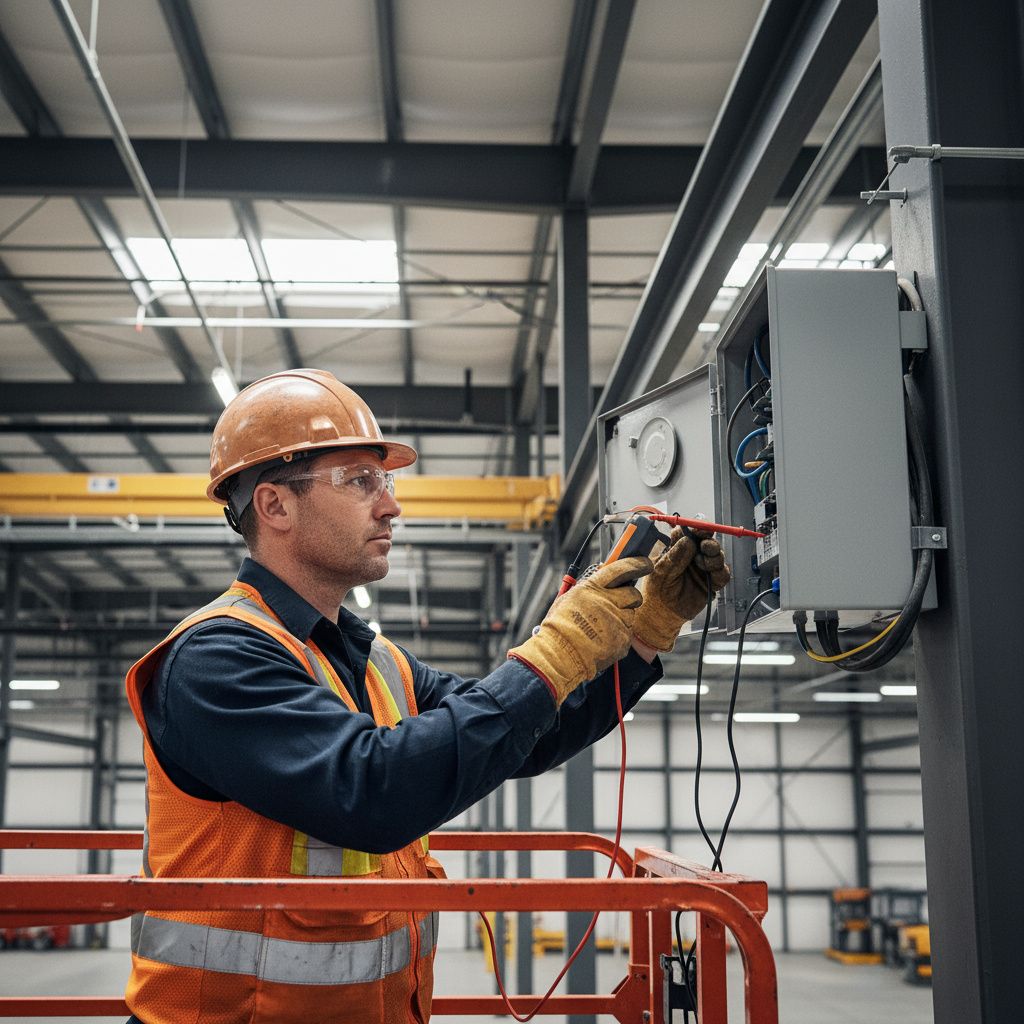

Pre-Install Voltage Checklist for High Bay Retrofits
The most reliable LED high bay retrofit begins with a calibrated multimeter, not a ladder. In professional facility management and electrical contracting, the primary cause of "infant mortality" in new lighting systems is not a manufacturing defect, but a failure to verify the existing electrical infrastructure’s compatibility with modern solid-state lighting (SSL) drivers.
Assuming that the voltage at the panel is identical to the voltage at the fixture leads to costly callbacks, voided warranties, and potential safety violations. This technical guide establishes a benchmark-level pre-installation protocol to ensure every high bay fixture operates within its design parameters, maximizing both longevity and energy efficiency.
The Regulatory Imperative: Why Verification is Mandatory
Before hanging a single high bay fixture, practitioners must recognize that checking voltage is not merely a "best practice"—it is a regulatory requirement. According to the National Fire Protection Association (NFPA) 70E, an Electrical Hazard Risk Assessment must be performed before any work is conducted on or near energized parts.
Furthermore, Underwriters Laboratories (UL) 1598, which governs the safety of luminaires, and National Electrical Code (NEC) 410.130(G) mandate that luminaires be installed on circuits with a voltage rating that does not exceed the luminaire's marked rating. Connecting a 277V-rated fixture to a 480V circuit is not only a safety hazard but an illegal installation that exposes the contractor to significant liability.
As detailed in the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights, the shift toward intelligent, high-efficacy lighting requires a more disciplined approach to the underlying electrical environment.
The Point-of-Load Measurement Rule
A common, costly mistake is assuming voltage is consistent across a large facility. In massive warehouse or manufacturing environments, voltage at the main distribution panel may read a perfect 277V. However, due to voltage drop over hundreds of feet of existing, often undersized wiring, the voltage at the furthest fixture location can drop significantly.
If the voltage at the fixture falls below the driver's minimum operating threshold (often around 100V for a 120-277V nominal system), the fixture may suffer from flickering, erratic dimming behavior, or immediate driver failure.
Modeling Note: Voltage Drop Impact This scenario model assumes a 277V nominal circuit with 12AWG copper conductors.
Parameter Value Unit Rationale Nominal Source Voltage 277 V Standard commercial lighting circuit Circuit Length 400 ft Typical large-scale warehouse run Load per Circuit 12 A 80% of 15A breaker (NEC continuous load) Calculated Voltage Drop ~15 V Based on standard Ohm’s Law calculations Resulting Voltage at Fixture 262 V Remains within 120-277V driver range Boundary Condition: If the same circuit were 120V, a 15V drop would represent a 12.5% loss, potentially pushing the driver below its stable operating window (typically +/- 10% of nominal).
Advanced Hazard: Multi-Wire Branch Circuits (MWBC)
In many legacy industrial facilities, lighting is wired using Multi-Wire Branch Circuits (MWBC). These circuits share a common neutral among two or three phases. While efficient for material usage, they present a "gotcha" for LED retrofits.
If an electrician disconnects only one circuit leg during a retrofit, current from the other phases can backfeed through the shared neutral to the supposedly de-energized LED driver. This creates a lethal shock hazard and can introduce overvoltage transients that destroy sensitive SSL components. Identifying MWBCs is critical; NEC 210.5(C) mandates the identification of ungrounded conductors by voltage and system, but in older buildings, these markings are frequently missing or incorrect.
Power Quality: Transients and NEMA 410 Compliance
LED drivers are far more sensitive to power quality than the High-Intensity Discharge (HID) ballasts they replace. A circuit reading a steady 480V nominally can still be plagued by destructive transients. According to NEMA 410-2017, inductive load switching (from large motors or HVAC units in a factory) can generate spikes exceeding 6kV.
Standard multimeters often miss these micro-second events. For high-value retrofits, we recommend using power quality loggers to identify latent issues before installation. This prevents "mystery" failures that are often incorrectly categorized as warranty claims.
Efficacy and DLC Premium Considerations
Voltage doesn't just affect safety; it affects the Return on Investment (ROI). Many practitioners assume that an LED fixture's efficacy (lumens per watt) is constant across its voltage range. However, the efficacy curve of a multi-voltage driver (120-277V) is rarely flat.
Based on our analysis of DesignLights Consortium (DLC) Qualified Products List (QPL) data, efficacy often peaks in the middle of the voltage range (e.g., around 208V-240V). At the extremes (120V or 277V), efficacy can drop by 5-10% due to driver conversion losses.
For projects aiming for DLC Premium rebates, which require higher efficacy thresholds (often >135 lm/W), verifying the actual operating voltage is essential. If the project was calculated at 208V but the facility actually runs at 120V, the realized energy savings may fall short of the projections required for the utility rebate.
The Essential Pre-Installation Voltage Checklist
Use the following checklist for every circuit before mounting new high bay fixtures.
| Step | Action Item | Technical Threshold / Requirement |
|---|---|---|
| 1 | Verify Nominal Voltage | Match fixture rating (e.g., 120-277V or 347-480V) to circuit. |
| 2 | Measure at Point of Load | Verify voltage at the last fixture on the run while existing lights are ON. |
| 3 | Check for Shared Neutrals | Identify MWBCs to prevent backfeed hazards and neutral overloads. |
| 4 | Test Ground-to-Neutral | Should be < 2V. Higher readings indicate poor grounding or neutral issues. |
| 5 | Assess Inductive Loads | Note if large motors or compressors share the same branch circuit. |
| 6 | Verify Control Compatibility | Ensure 0-10V dimming wires are Class 1 or Class 2 as per NEC 725. |
Logic Summary: Why 2V Ground-to-Neutral?
High ground-to-neutral voltage is a heuristic for identifying "dirty power." In SSL systems, this often correlates with electromagnetic interference (EMI) that can interfere with sensors or cause ghosting (LEDs staying slightly lit when off). While not a mandated limit for all luminaires, staying below 2V is a recognized practical baseline for sensitive electronics.
Addressing Common "Gotchas"
- The 480V Trap: Never assume a high bay is "universal voltage." Most standard "universal" drivers are 120-277V. Connecting them to a 480V system results in immediate, non-warrantable failure. Always check for the "HV" or "48V" designation on the driver label.
- Dimming Circuit Interference: When using 0-10V dimming, ensure the control wires are not run in the same conduit as high-voltage power wires unless they have the appropriate insulation rating. This prevents induced voltage from causing flickering.
- Phase Balancing: In large retrofits, ensure the lighting load is balanced across all three phases. An unbalanced system can lead to neutral current issues and increased voltage drop.
Summary of Safety and Performance Verification
By implementing this pre-installation voltage checklist, electrical contractors and facility managers move from "hoping it works" to "knowing it complies." The integration of IES LM-79 performance data and UL safety certifications is only effective if the installation environment is stable and correctly measured.
Protect your investment, ensure the safety of your crew, and maximize the energy savings of your high bay system by making voltage verification the first step of every project.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical or engineering advice. All electrical work should be performed by a licensed electrician in accordance with local building codes, the National Electrical Code (NEC), and OSHA safety standards. Always de-energize circuits before performing maintenance or installation.
