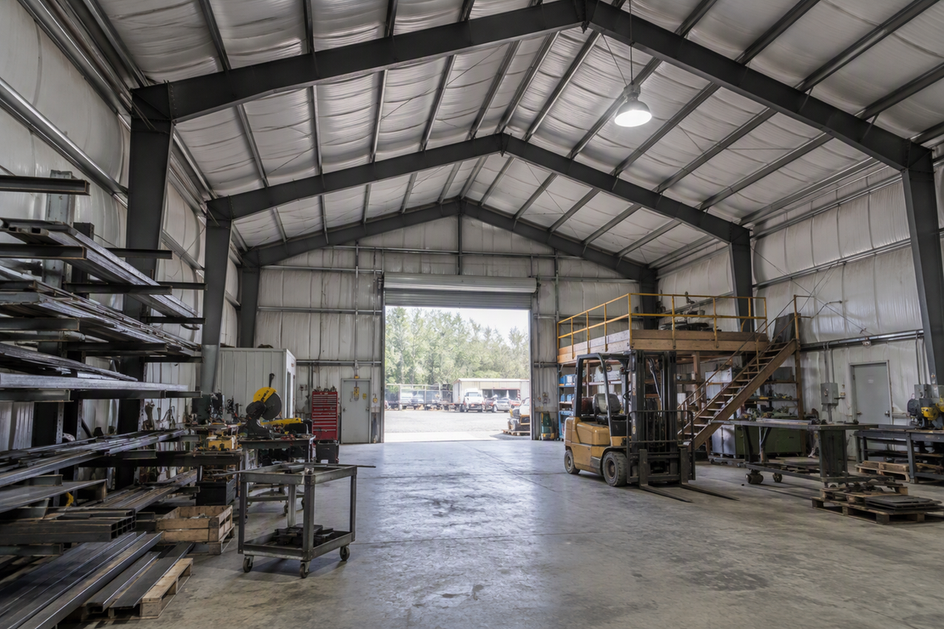

A pitched or uneven roof changes a high-bay lighting layout because each proposed fixture position can sit at a different height above the work area. One average ceiling height can hide those differences, and it can also hide how the light from neighboring fixtures overlaps. Treat the roof shape as a layout input, not a cosmetic detail.
Roof shape alone won't give you the right spacing or fixture count. It shows you which heights and orientations to record. It also helps you see when a layout needs photometric planning before you buy or install high bay lights.
Why One Average Ceiling Height Can Mislead
An average height describes the room. A layout depends on the fixture. What matters is where each fixture will actually hang and how far it sits above the surface people work on, which is not always the roof surface overhead.
Here is an illustrative case with no measurements. A building has one pitched roof plane that rises from a low eave wall to a high ridge. A row of fixtures near the eave hangs closer to the work plane than a row near the ridge. Average the two and you get a middle height that matches neither row. Any spacing or overlap estimate built on that middle number is describing fixtures that don't exist.
Stepped or multi-plane roofs make the same problem sharper. Each section may need its own mounting assumption, so one ceiling-height entry can merge areas that behave like separate rooms.
The geometry tells you where the heights differ. It does not tell you the spacing, the beam overlap, or the final number of fixtures. Those depend on the fixture's light distribution, which the next sections connect to each position.
Map Roof Planes and Proposed Fixture Locations
Start with a geometry record organized by roof plane and by fixture position, not by room. A facility manager or contractor can build it from drawings or a site walk, as long as every measurement uses the same reference point and units.
- Roof-plane boundaries and elevations: Mark where each plane, step, or change in slope begins and ends. Note its elevation, and give single-plane, multi-plane, stepped, and uneven sections their own entries.
- Proposed fixture locations: Plot each planned position on the plan so its height comes from that spot, not from a room-wide figure.
- Fixture-to-workplane height: Record the vertical distance from each fixture position down to the work plane.
- Work-plane height: Note the height of the surface that needs light, such as the floor, racking tops, or benches, so every fixture height is measured to the same target.
- Intended fixture orientation: Note whether each fixture will hang level, follow the roof slope, or be aimed some other way.
- Major obstructions: List beams, trusses, ducts, racking, cranes, and other ceiling-mounted or tall objects that sit between fixtures and the work area.
Coordinating lighting with the ceiling is established design practice. For interior spaces on VA projects, VA guidance calls for coordinating luminaire layout with ceiling type, construction, and ceiling-mounted objects, along with furniture and equipment layouts. That manual is written for VA facilities, but the same coordination inputs belong in any roof-geometry record. If parts of the record are still blank, our guide to lighting project inputs shows how missing details can stall a design and what to gather next.
Relate Each Fixture Position to Orientation and Distribution
To judge expected coverage and beam overlap, look at three inputs together for every proposed fixture position. Any one of them on its own leaves the overlap question open.
- Height above the work plane: Use the position-specific value from your geometry record. A fixture near a ridge and one near an eave are different inputs even if they are the same model.
- Intended orientation: Record how the fixture will actually hang or be aimed. Don't assume the roof slope decides the aiming. That choice depends on the mounting method and the design intent.
- Supported light-distribution information: Use the distribution data published for the exact fixture model and configuration. Don't infer it from the fixture category, the product name, or the roof shape.
These inputs set up a coverage review. They don't produce a spacing, overlap, or light-level result without proper photometric evidence for the chosen fixture. Our photometric data guide explains how to read the files and reports that hold this information. When you compare candidates in our high bay lights collection, check that the exact model you shortlist has distribution data you can bring into the review.
Use the Geometry Review to Choose the Next Step
A preliminary geometry review organizes your assumptions and shows where they differ. It does not confirm light levels. Use the table to match your situation to the next planning step.
| Review condition | What the review establishes | Next step |
|---|---|---|
| Single pitched plane, heights recorded per position | Where fixture heights differ along the slope | Pair each position with fixture distribution data |
| Multiple or stepped planes mapped separately | Which sections need their own assumptions | Review each section on its own |
| Orientation not yet decided | A gap in the layout inputs | Choose the mounting and aiming approach first |
| Distribution data missing for the chosen model | Geometry only, no coverage basis | Get the model's photometric files |
| Spacing, distribution, or overlap still unclear | The assumptions, not the result | Get photometric planning before finalizing placement or quantity |
The last row is the decision point. If the review can't settle how light from neighboring fixtures overlaps across different heights, don't lock in a fixture count. A lighting-design calculation can model that. Tools such as DIALux evo indoor lighting let you orient adjustable luminaires, run project calculations, and view the results visually. If you're weighing whether a full layout is worth it for your site, read when to request a photometric layout. You can also send your roof-plane record through our lighting design page when you want a proposed layout reviewed.
FAQs
When is an average ceiling height misleading for a high-bay layout?
It misleads whenever proposed fixture positions sit at noticeably different heights, such as along a sloped roof plane or across stepped sections. The average then stands for a fixture height that may not exist anywhere in the building. Any overlap estimate built on it rests on the wrong input.
What should I measure at each proposed fixture location?
Record the fixture's height above the work plane, how it will hang or be aimed, and any obstructions between it and the work area. Measure every location from the same reference point and in the same units so you can compare positions directly.
Does the roof slope determine how a high-bay fixture should be aimed?
No. The slope tells you where heights change, but it does not set a universal aiming angle. Orientation depends on the mounting method and the design intent. Coverage then depends on that orientation combined with the fixture's published light distribution.
Can one fixture spacing work for every roof section?
Geometry alone can't confirm that. Sections with different elevations or orientations need their own assumptions. Whether one spacing works across them is a question for a photometric calculation based on the exact fixture's distribution data.
