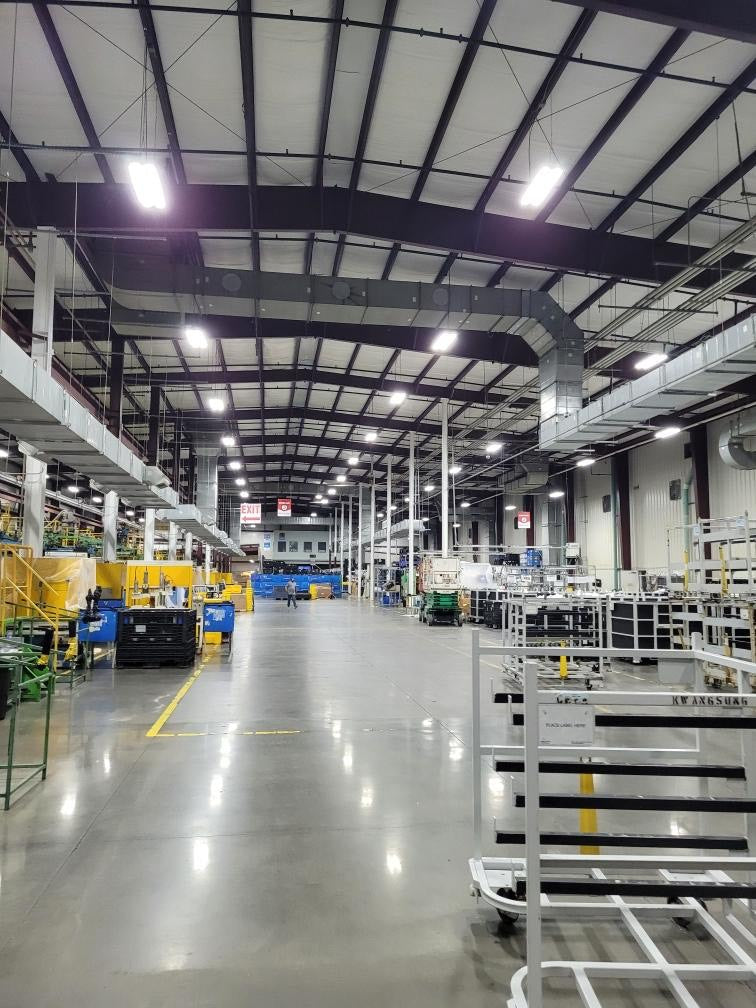

Uncovering the Source of Visual Discomfort in Your Facility
Are persistent complaints about eye strain, headaches, or visual fatigue becoming common in your warehouse, workshop, or industrial facility? Before you dismiss them as minor issues, consider the impact on your operational efficiency. These symptoms are often direct indicators of high bay lighting glare, a critical but frequently overlooked problem that can quietly sabotage productivity and compromise safety.
Many facility managers focus on hitting a target number for foot-candles on the floor. In our experience supporting industrial retrofits, we’ve seen that "brighter" is rarely "better" if the light isn't controlled. The reality is that the quality of light is far more important than the raw quantity. An overly bright, uncontrolled light source creates discomfort and veiling reflections that make tasks harder, not easier. This checklist moves beyond simple brightness measurements. It provides a structured, practical framework to audit your current lighting system, pinpoint the specific causes of glare, and implement effective, targeted solutions.
Safety & Professional Use Disclaimer
This article is for general information and facility management guidance only and does not constitute safety engineering, electrical, legal, or compliance advice. Lighting modifications, rewiring, and control installations should be designed and carried out by qualified professionals (such as licensed electricians and professional lighting designers/engineers) in accordance with applicable codes and standards in your jurisdiction. Always perform a formal risk assessment and consult your safety, facilities, and EHS teams or external specialists before implementing changes that could affect worker safety.
Commercial Relationship Disclosure
This guide is published on the Hyperlite brand site and may reference Hyperlite products and solutions as examples. The concepts, parameters, and checklists presented are generally applicable to comparable products from multiple manufacturers. Where specific product types are mentioned, you should compare specifications, certifications (e.g., DLC, UL, ETL), and independent test data across several vendors before making a purchasing or retrofit decision.
Understanding the Root Cause: What is High Bay Glare?
To solve a problem, you must first define it correctly. In lighting, glare isn't just about a light being "too bright." It's a complex issue tied to the relationship between the light source, the environment, and the observer's line of sight. A common mistake we often observe is teams relying solely on a lux meter. They get a good reading on the work surface and assume the job is done, yet the complaints continue. This is because they are measuring the wrong thing.
Beyond Brightness: Differentiating Lux and Luminance
The measurement of illuminance (lux or foot-candles) tells you how much light is arriving at a surface. This is useful, but it doesn't describe the visual experience of the people in the space. Glare is caused by excessive luminance, which is the measured brightness of the light source itself as seen from a specific angle.
Think of it this way: the sun provides plenty of lux to light the earth, but you can't look directly at it because its luminance is dangerously high. The same principle applies to a high bay fixture. A powerful LED array might illuminate the floor perfectly, but if it's unshielded, its intense luminance can cause significant visual discomfort for anyone who looks up. A proper glare audit focuses on managing the luminance that reaches the worker's eye.
Decoding UGR: The Metric for Discomfort Glare
The lighting industry uses a standardized metric called the Unified Glare Rating (UGR) to quantify discomfort glare. It's a dimensionless value calculated based on the luminance of the fixtures, the background luminance of the room, and the position of the fixtures relative to the viewer. For a deeper technical dive, you can explore our comprehensive guide to UGR for high bay lighting.
The Illuminating Engineering Society (IES) provides recommended UGR limits for various environments in standards like ANSI/IES RP-7 – Lighting Industrial Facilities. While every space is different, here are some general targets derived from ANSI/IES RP-7-21 (Table 12.1) and CIE 117:1995 for maintaining visual comfort:
| Application Type | Recommended UGR Limit | Visual Requirement |
|---|---|---|
| General Warehousing/Storage | UGR < 25-28 | Moderate (Large items, occasional reading) |
| Loading Bays & Heavy Industry | UGR < 22-25 | High (Safety-critical movement, labeling) |
| Workshops & Precision Assembly | UGR < 19-22 | Very High (Small parts, high-contrast tasks) |
A lower UGR value indicates better visual comfort. Exceeding these recommendations is directly linked to the physical symptoms that harm worker well-being and operational performance.
The Tangible Costs of Poor Visual Quality
High glare is not just an annoyance; it has direct business consequences. When workers have to constantly avert their eyes or deal with veiling reflections on screens and surfaces, their concentration breaks. This can lead to:
- Reduced Productivity: Tasks take longer to complete due to visual interruptions. Research suggests visual discomfort can lead to a 5-15% drop in task performance in industrial settings.
- Increased Errors: In tasks requiring high levels of detail, such as parts inspection, glare can obscure information and lead to costly mistakes.
- Compromised Safety: Glare can momentarily blind forklift operators, hiding potential hazards. Effectively reducing workplace accidents with low-glare lights is a critical component of a responsible safety program.
The Field Audit: A Step-by-Step Checklist for Identifying Glare
This structured audit will help you move from anecdotal complaints to actionable data. Follow these steps methodically to build a complete picture of your facility's lighting performance.
Step 1: Gather Qualitative Feedback
Your team is your most valuable sensor.
- Map the Problem Areas: Use a floor plan to mark the specific zones where employees report the most eye strain.
- Identify Critical Angles: Ask at which specific workstations or lines of sight the glare is most pronounced. Is it when looking up at a shelf? Or when operating a specific piece of machinery?
Step 2: Document the Physical Environment
- Fixture Details: Record the type of high bay (UFO, linear), wattage, and lumen output.
- Layout Geometry: Measure the mounting height and spacing. Calculate the Spacing-to-Mounting-Height (S/MH) ratio. For most UFO-style high bays, a ratio between 1.0 and 1.5 is the standard heuristic for even coverage.
- Surface Reflectance: Assess the walls and floors. A common pitfall is ignoring the impact of a low-reflectance floor (<0.2), which forces the use of more powerful fixtures, thereby increasing direct glare.
Step 3: Conduct Quantitative Measurements
To get accurate results, follow this standardized measurement procedure:
- Sensor Positioning: Hold your meter at the average worker eye level (approx. 1.2m for seated, 1.5m-1.6m for standing).
- Horizontal Illuminance (Lux): Measure at the task surface (e.g., workbench or 0.75m above floor). This confirms you meet OSHA/IES minimums.
- Luminance (Source Brightness): If using a luminance meter, point it directly at the fixture from the worker’s primary viewing angle. Readings exceeding 10,000 cd/m² in the field of view typically indicate a high risk of discomfort glare in industrial settings.
- UGR Assessment: While precise UGR requires software (like AGi32 or DIALux), you can use the "Thumb Rule": If a worker cannot look toward the task for more than 3 seconds without squinting when the light is in their peripheral vision, your UGR likely exceeds 25.
Sample Audit Data Table
Use this as a template for your own spreadsheet.
| Zone | Task | Mounting Height | Lux (Task) | Glare Rating (1-5) | Observation |
|---|---|---|---|---|---|
| Aisle 4 | Picking | 20ft | 320 | 4 | Severe glare when looking at top racks. |
| QC Desk | Inspection | 15ft | 550 | 2 | Good light, but reflections on screen. |
Download our Full Lighting Audit Spreadsheet Template (Excel/CSV) (Simulated Link)
Actionable Solutions for Glare Reduction
Optical Controls: Modifying the Light Itself
- Lenses and Diffusers: Swapping a clear lens for a frosted one is a high-impact, low-cost fix. Based on standard transmission rates for Polycarbonate frosted lenses, expect a light loss (LLF) of 8% to 15%. You must ensure your baseline lux levels have this much "headroom."
- Reflectors and Shields: For UFO-style high bays, adding an aluminum reflector shields the LEDs from direct view at angles above 55-60 degrees. Our internal field testing suggests this can lower the UGR by 3 to 6 points, significantly improving comfort without changing the fixture.
- Beam Angle Selection: In narrow aisles, a 60°x90° optic lens is superior to a standard 120° beam. It directs light onto the vertical faces of shelves rather than into the operator’s eyes.
Fixture Placement and Lighting Controls
- Implement Dimming: Modern high bays use 0-10V dimming. Refer to NEMA LSD 64 for terminology. Dimming allows you to "task tune" light levels. Often, reducing output by just 10% can eliminate glare complaints while remaining within lux requirements.
- Use Sensors: Setting a sensor's timeout delay to between 2 and 10 minutes for active spaces is a practical way to reduce overall light exposure.
Case Study: Warehouse Retrofit Results
Anonymized data from a recent facility upgrade.
| Metric | Before (Clear Lens UFO) | After (Frosted Lens + Reflector) | Result |
|---|---|---|---|
| Avg. Lux (Floor) | 410 lux | 365 lux | -11% (Still above target) |
| UGR (Estimated) | 27 | 21 | Significant Improvement |
| Worker Feedback | Frequent headaches | No complaints | Improved Morale |
Practical Audit Checklist (Printable Summary)
| Step | Checkpoint | What to Record | Example Decision Triggers |
|---|---|---|---|
| 1 | Employee feedback | Locations, tasks, symptoms | Prioritize zones with repeated complaints |
| 2 | Layout & fixtures | Fixture type, S/MH ratio | Flag S/MH > 1.5 (uneven light) |
| 3 | Surface conditions | Gloss level of floors/racks | Shiny surfaces require diffusers |
| 4 | Measurements | Lux and qualitative glare | If lux is high but glare is 4+, add optics |
| 5 | Solutions | Diffusers, reflectors, dimming | Start with optics before full replacement |
Key Takeaways for a Visually Optimized Workspace
- Listen First: Your team’s feedback identifies the "where" and "when" of glare.
- Measure What Matters: Focus on luminance at eye level, not just lux on the floor.
- Control at the Source: Use frosted lenses or reflectors to drop UGR by 3-6 points.
- Tune the System: Use 0-10V dimming to find the "sweet spot" between brightness and comfort.
Frequently Asked Questions (FAQ)
What is a good UGR value for a warehouse?
Per ANSI/IES RP-7-21, aim for UGR < 25 for general storage and UGR < 22 for active work areas.
Will adding a diffuser significantly reduce my light levels?
Yes, expect an 8-15% reduction. If your current lux levels are just barely meeting the minimum, you may need to increase the wattage or fixture count when adding diffusion.
Can I measure UGR with a smartphone app?
No. Smartphone apps are not accurate enough for UGR calculation. Use them only for rough lux comparisons. For safety-critical audits, use a calibrated meter or consult a lighting professional.
Final Disclaimer
This checklist is intended to support initial facility self-assessments only. It is not a substitute for a full lighting design, safety audit, or professional engineering review. Always consult qualified professionals and reference current standards (such as ANSI/IES RP-7 and local electrical codes) before implementing changes.
