A dark metal pole barn does not have one universal lumen number that works for every building. Dark ceilings and walls absorb more light than white or light-colored surfaces, so the right total depends on your task, floor area, and how much of the fixture's output actually reaches the work plane. Start with a task-specific foot-candle target and your barn's dimensions, then adjust for surface reflectance before you settle on a fixture count.
How Many Lumens Does a Dark Metal Pole Barn Need?
Your initial lumen estimate comes from a task-specific illuminance target multiplied by your floor or task-plane area, then adjusted for how much of that light is actually usable in your barn. That "usable" adjustment is where dark metal matters most, because it changes how much light bounces back into the room instead of being absorbed.
Once you have an initial lumen total, divide it by the usable output of a candidate fixture to get a preliminary fixture count. Treat that number as a starting point rather than a purchase quantity. Spacing, mounting height, beam distribution, and uniformity still need to be checked before the estimate is ready for buying or installing fixtures, which the later sections in this guide walk through step by step.
Why Dark Metal Surfaces Change the Estimate
Dark, low-reflectance metal surfaces absorb more light than they reflect, so dark surfaces absorb reflected light that a lighter-colored ceiling or wall would otherwise bounce back into the room. That is why a generic lumen-per-square-foot rule tends to undersell how much output a dark barn actually needs.
The size of the effect depends on where the dark surfaces sit, not just that they exist. A dark ceiling over an open floor behaves differently than dark walls with a lighter roof deck, and a barn with mostly dark surfaces on both planes loses more usable light than one with a single dark surface. Luminaire distribution and room geometry also play a role, since a fixture that throws light wide across a dark wall loses more of that light than one aimed mostly at a task plane below it.
Because these variables interact, the reliable move is to represent your actual finishes inside a coefficient-of-utilization or photometric calculation rather than subtracting an invented dark-surface percentage from a generic lumen total. A model built on your real surfaces will always be more accurate than a fixed adjustment borrowed from another project.
Measure These Inputs Before You Calculate
A usable estimate starts with your actual room and mounting geometry, your task zones, and the fixture data behind your candidate lights. Collect these three groups of inputs before you run any calculation.
Room Dimensions and Mounting Geometry
- Measure the barn's length and width in feet.
- Record the clear ceiling height and the mounting height you actually plan to use, not just the building's peak height.
- Note obstructions, aisles, existing mounting points, and any retrofit constraints that limit where fixtures can go.
Task Zones and Target Illuminance
A foot-candle equals one lumen per square foot of illuminated surface, but a single average number can hide dark corners or an underlit workbench. Break the barn into zones instead of treating it as one uniform space.
- Identify storage/access areas, equipment zones, workbenches, and maintenance areas separately.
- Define the target surface, or task plane, for each zone rather than assuming the floor everywhere.
- Note whether each zone needs horizontal illuminance, vertical illuminance, or both, since equipment inspection often needs vertical visibility that floor-level readings miss.
Fixture and Surface Inputs
- Record your actual ceiling and wall finish, since that assumption feeds directly into the utilization or photometric model.
- Collect the candidate fixture's rated lumens, input watts, beam or distribution data, mounting options, and its exact IES photometric file if one is available.
- Note controls, existing wiring or mounting constraints, and daylight contribution that could change the layout.
Calculate an Initial Lumen Total and Fixture Count
Use this sequence as a planning worksheet. Every variable after the area calculation depends on your specific room, fixture, and task assumptions, so treat the result as a preliminary figure rather than a final purchase quantity.
- Calculate the floor or task-plane area in square feet: area = length × width.
- Set your task-specific target illuminance in foot-candles for the relevant zone, based on the activity performed there rather than a barn-wide average.
- Estimate the initial lumen requirement using a coefficient-of-utilization model: initial lumens = target foot-candles × area ÷ (coefficient of utilization × light-loss factor). Both the coefficient of utilization and the light-loss factor should reflect your actual surfaces, fixture distribution, and maintenance assumptions, not a generic default.
- Divide the initial lumen total by the usable lumens per fixture for your candidate light to get a preliminary fixture count.
- Hold that count as preliminary until you check spacing, beam distribution, glare, minimum illumination, and uniformity across the room, since fixture lumens alone do not guarantee that every point on the task plane receives adequate light.
Match Ceiling Height and Task to a Lighting Approach
Relative mounting height and task type change whether a simple screening estimate is enough or whether you need a modeled layout. The table below groups common pole-barn conditions into planning tiers rather than fixed numeric standards.
| Mounting Height | Task Context | Planning Approach |
|---|---|---|
| Low | Storage/access | Simple screening estimate |
| Medium | Mixed storage and light work | Distribution comparison |
| High | Workshop/maintenance or irregular layout | Photometric layout |

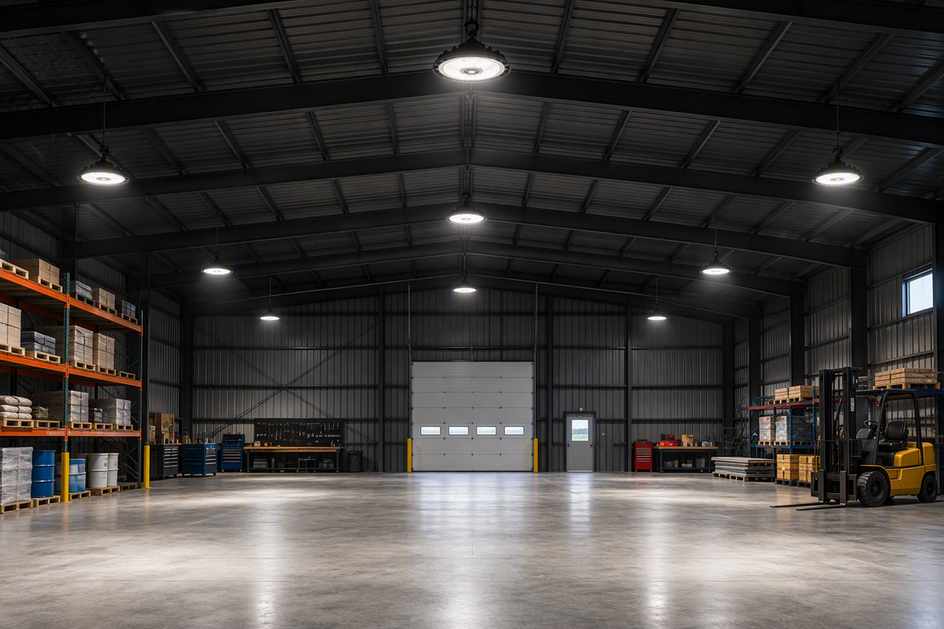

Higher mounting and longer throw distances make beam distribution and fixture spacing more consequential, because light has more room to spread unevenly before it reaches the task plane. Open, high-ceiling areas are often screened first with UFO light or high-bay fixtures, since that category is built for wide-area coverage from a single mounting point, but the beam angle, mounting height, and spacing still decide whether a given UFO light actually covers your floor evenly.
When comparing fixtures, remember that lumens per watt is an efficiency metric, not a guarantee of floor coverage. A higher-efficacy UFO light is only a fair comparison against another product with a similar distribution and application, and efficacy alone does not tell you whether light actually lands where your task needs it. If you're browsing options by category, our LED pole barn light collection is one place to compare current listings once you know your target height and task mix.
Verify the Layout Before You Buy or Install
Before you buy fixtures in quantity, match the exact photometry of your chosen fixture to your actual mounting height, spacing, room geometry, and task zones. A hand estimate is a useful starting point, but it is not a substitute for checking the real numbers against your specific barn.
- Confirm your measured dimensions, clear height, and intended mounting height match what you used in the calculation.
- Request the exact IES file or photometric report for your candidate fixture and model it against your actual mounting height, spacing, and surface conditions rather than relying on published lumens alone.
- Check horizontal and vertical illuminance where relevant, along with minimum values, uniformity, and glare, since an adequate average can still hide a dark aisle or an underlit vertical surface.
- Verify controls, total electrical load, and any manufacturer-specific mounting or spacing requirements for the fixture you're considering.
- After installation, measure or otherwise verify the result where practical, since a modeled layout is still a prediction until it is confirmed in the finished space.
Request a modeled photometric layout instead of relying on a hand estimate when the barn is high-ceilinged, irregular, mixed-use, or constrained by existing retrofit mounting points; our high bay layout request checklist and lighting design support page are both useful starting points for that step. If the project involves electrical wiring work, a project-specific code or permit question, or a potentially hazardous or classified location, stop at lighting planning and hand those decisions to a qualified electrician or local authority; this guide does not determine electrical design or code compliance.
FAQs
Do dark walls and a dark ceiling require the same lumen adjustment?
No. A dark roof over a lighter wall behaves differently than dark walls with a lighter ceiling, and a barn with dark surfaces on both planes loses more usable light than one with only a single dark surface. Identify which surfaces actually dominate your barn and carry those specific finish assumptions through your utilization or photometric model instead of applying one blanket adjustment to every combination.
Can I compare UFO lights by published lumens alone?
Not reliably. Two UFO lights with similar published lumens can still deliver different floor and vertical illumination because their beam distribution, mounting height assumptions, and photometric files differ. Compare fixtures using the same-scope photometry and mounting conditions, and treat lumens-per-watt as an efficiency screen rather than a coverage guarantee.
What if my pole barn has both storage and workshop areas?
Plan storage/access and workshop or maintenance zones separately rather than averaging the whole barn into one assumption. A single barn-wide target can leave a workbench or equipment-maintenance area underlit even when the overall average looks adequate, so give each zone its own task-plane target and check it on its own terms.
When should I request a photometric layout instead of using a hand estimate?
Move from a hand estimate to a modeled photometric layout when the ceiling is high, the mounting grid or geometry is irregular, tasks vary meaningfully across the barn, or a retrofit needs to reuse existing mounting locations. Provide your measured dimensions, mounting height, surface finishes, task zones, and the fixture's exact IES file so the model reflects your actual conditions rather than a generic layout.
