Cross-angle placement means aiming a second light source from a different side of the chuck, spindle, or workpiece so the marked cutting point still gets light when the first beam is blocked. It is a testable arrangement, not a guaranteed fix: you check it against glare, clearance, mounting stability, and guard access before calling it done. If one offset light already reaches the cutting point cleanly, you may not need a second source at all.
The real work is identifying exactly what blocks your light and then testing an offset position at the actual point where the bit or tool meets the work, not just at the surrounding bench.
How Cross-Angle Lighting Changes Chuck and Spindle Shadows
A shadow forms whenever something sits between your light source and the cutting point, not because the room is dim overall. Cross-angle lighting works by adding or moving a source so it reaches that same point from an unblocked direction.
What Creates the Shadow at the Cutting Point
On a drill press, the chuck, quill, spindle head, or the workpiece itself can sit directly between an overhead or operator-side light and the hole you are drilling. On a lathe, the chuck, spindle, tool post, tool rest, workpiece, or an enclosure guard can block the beam differently depending on where the cut is happening. According to occupational lighting guidelines, local or task lighting increases light levels over immediate surroundings, but direct fixtures still cast shadows when an object sits in their path. This is a placement problem, not a brightness problem: adding a brighter bulb to the same blocked position will not move the shadow off the cutting point.
What Cross-Angle Placement Can and Cannot Do
A second source placed on the opposite or offset side of the obstruction can reach the same cutting point from a direction the first light cannot cover. Objects between a fixture and the work block light and cast shadows, and adding a fixture in a different position is one way to work around that obstruction, along with using more reflected or local light. Treat two offset lights as a trial arrangement to compare against a single adjustable source, not as an automatic upgrade. A cross-angle setup only counts as a win if it clears the shadow at the cutting point without creating glare, blocking clearance, loosening a mount, or crowding the guard, all of which the next sections cover.
Secure the Machine Before You Test Light Placement
Before you touch a bracket, cord, or fixture near the machine, stop and secure it under its own procedure. This section is the one place in the article that covers that boundary, so keep it in mind rather than re-reading it later.
Stop, Secure, and Preserve the Guard
Adjust or install a light only after the machine is stopped and secured or de-energized under its applicable machine-specific procedure, and keep guards properly installed rather than removed or bypassed. Federal machine guarding standards emphasize that missing, bypassed, or improperly installed guards cause severe injuries, requiring effective lockout/tagout procedures whenever servicing or adjusting around equipment. This article does not cover live testing, breaker selection, or wiring work; those steps belong to a qualified electrician and your machine's manual.
Reject Unsafe Light and Cord Paths
Keep the fixture, bracket, and cord fully outside the chuck's rotation, the chip path, and any pinch point created by the quill, tool post, or tool rest. If a mount wobbles or a cord can reach a moving part, that position has failed the test regardless of how well it kills the shadow. Confirm you can still reach the machine's normal controls without leaning past the fixture or its cord.

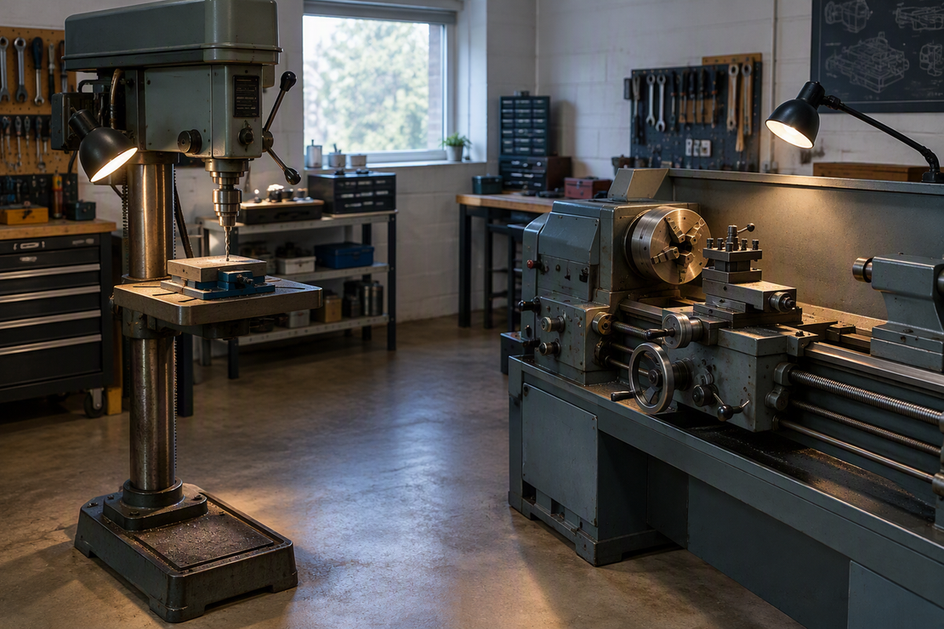

Map a Feasible Layout: Drill Press vs. Lathe
Your starting offset position depends on which part of the machine blocks the beam, not on a universal angle. Use the table to pick a starting side to test, then verify it against your actual layout before treating it as final.
| Layout | Starting arrangement | Why it matters | Verify first |
|---|---|---|---|
| Drill press, head/table blocking | Offset light to the side not blocked by the quill or chuck | Chuck and quill commonly sit between an overhead beam and the hole | Cutting-point visibility, control reach, table clearance |
| Lathe, chuck/tool-rest blocking | Offset light positioned along the operator-facing side of the workpiece | Chuck, tool post, and workpiece shift the shadow as the cut moves | Tool-to-work view, control access, guard clearance |
| Guarded or enclosed machine | Test only positions the guard or enclosure leaves open | Available mounting space is the limiting factor, not brightness | Guard integrity, cord routing, mount stability |
| Fixed vs. portable test light | Try a portable light first to find the working angle | Portable units let you compare positions before any permanent mount | Repeatability of the position once tested |
For woodworking and mixed-use setups, official woodworking machine safety tips note that lighting should keep the workpiece, cutting point, and machine controls clearly visible without directing glare into the operator's eyes. A metalworking lathe or drill press still needs this same three-part check even though the finish and chip type differ, and any layout that fails one of those three checks needs a different starting side rather than a brighter bulb.
Run a Safe Shadow, Glare, Clearance, and Stability Test
Compare the marked cutting point before and after moving the light, with the machine stopped and secured. A layout only passes if it improves that specific view and creates no new glare, clearance, or stability problem.
Compare the Shadow at the Actual Cutting Point
Mark where the shadow falls with your current light, then test one offset source and note whether the cutting point is easier to inspect. Add a second source from a different side of the obstruction and compare that two-light arrangement with the single offset light at the same point, not at the surrounding bench. A win looks like the shadow moving off the tool-to-work interface, not just a brighter overall bench.
Check Glare, Clearance, Stability, and Flicker
From your normal operating position, check for direct glare from the fixture and reflected glare off the workpiece or machine surfaces. Practical lighting ergonomics recommendations note that correcting glare can mean repositioning the fixture, shielding it, using multiple smaller low-intensity sources instead of one intense beam, or adding brightness control. In addition, visible flicker near rotating equipment is worth stopping to check because it can make moving parts look slower or stationary than they are. With the machine still secured, confirm the fixture, mount, cord, and guard stay clear of the chip and moving paths, and that you can still see and reach the controls. If any of those checks fail, reposition, shield, or swap the fixture rather than accepting the layout.
Troubleshoot Persistent Shadows and Glare
Use this Symptom vs. Likely Cause vs. Safe Next Check table when the shadow or glare problem does not clear after your first test.
| Symptom | Likely Cause | Safe Next Check |
|---|---|---|
| Shadow still covers cutting point | Light still on the blocked side of the obstruction | Move the source to the opposite side and retest at the marked point |
| Shadow shifts as workpiece or tool moves | Single fixed source cannot follow a changing cut line | Add a second offset source or switch to a repositionable fixture |
| Glare or bright reflection in your eyeline | Fixture aimed too directly at the operator or a reflective surface | Reposition, shield, or diffuse the source; lower intensity if adjustable |
| Mount wobbles or shifts during operation | Bracket not rated for the mounting surface or vibration | Stop, resecure or remove the mount; do not tighten blindly while running |
| Fixture blocks controls or guard access | Position chosen for shadow reduction ignores reach and guard space | Choose a different offset that preserves full control and guard access |
| Visible flicker near rotating parts | Fixture or dimming behavior not matched to the load | Stop and verify the fixture's current documentation before continuing |
Before-Buying: Verify the Fixture Against the Workstation
Match a fixture's adjustability and beam control to reaching your marked cutting point, not to its brightness rating alone. The supplied specification sheet for any single fixture, including our own listings, only tells you what that model lists; it does not by itself prove drill-press or lathe compatibility for your workstation.
Match the Fixture to the Shadow-Reduction Job
An adjustable head or arm that can be repositioned without entering a moving or chip path is more useful here than a fixed high-output fixture aimed at one spot. Whether you choose a fixed mount or a fixed or portable work lights arrangement should follow how easily you can test and lock in the offset position you found during your trial, not a category preference. A linear light shadow guide is worth reading if you are comparing a linear fixture against a single point-source light for this same shadow problem.
Before-Buying Checklist
- Adjustability and beam control: confirm the head or arm can hold the offset position you tested without drifting back into the shadow.
- Glare, reflection, and flicker documentation: check the manufacturer's current spec sheet for shielding or diffusion options and any flicker notes near rotating equipment.
- Mounting, vibration, and cord routing: verify the mount interface and clearance match your machine, and that the cord cannot reach a moving or chip path.
- Power, controls, and exact SKU: match voltage, control compatibility, and the specific model number to the machine's current documentation rather than a general product line.
- CCT, CRI, and lumen output: check these only if reading fine detail at the cutting point is still the unresolved problem after your placement test; our CRI and UGR guide covers how those specs affect visual detail in a small shop.
If any of these items cannot be confirmed against current documentation, treat the fixture as verify-first rather than assuming it fits. Mark your cutting point, run the offset test with the machine secured, and confirm the exact model's documentation before you install anything permanently.
FAQs
What if a guarded or enclosed machine has no safe position for the light?
If no available position keeps the fixture, mount, and cord outside the guard, moving parts, and chip path, do not force a mount or bypass the guard to make room. Pause the retrofit, recheck your machine's manual and the fixture's documentation, and bring in qualified technical help if a safe position still cannot be identified.
Is cross-angle placement always better than a single offset light?
Not always. If a single offset light already reaches the marked cutting point cleanly without casting chuck shadows or creating glare in your eyes, a second fixture is unnecessary and adds extra mounting hardware and cords near the machine.
What should you do if an LED task light flickers near a spinning chuck?
Stop immediately and verify the fixture's specifications and dimming circuit before operating. Flicker around rotating equipment creates a stroboscopic effect that can make spinning parts appear stationary or slow, presenting a serious hazard.
