Why Cold-Forged Aluminum Shields Outlast Plastic Reflectors in Industrial Lighting

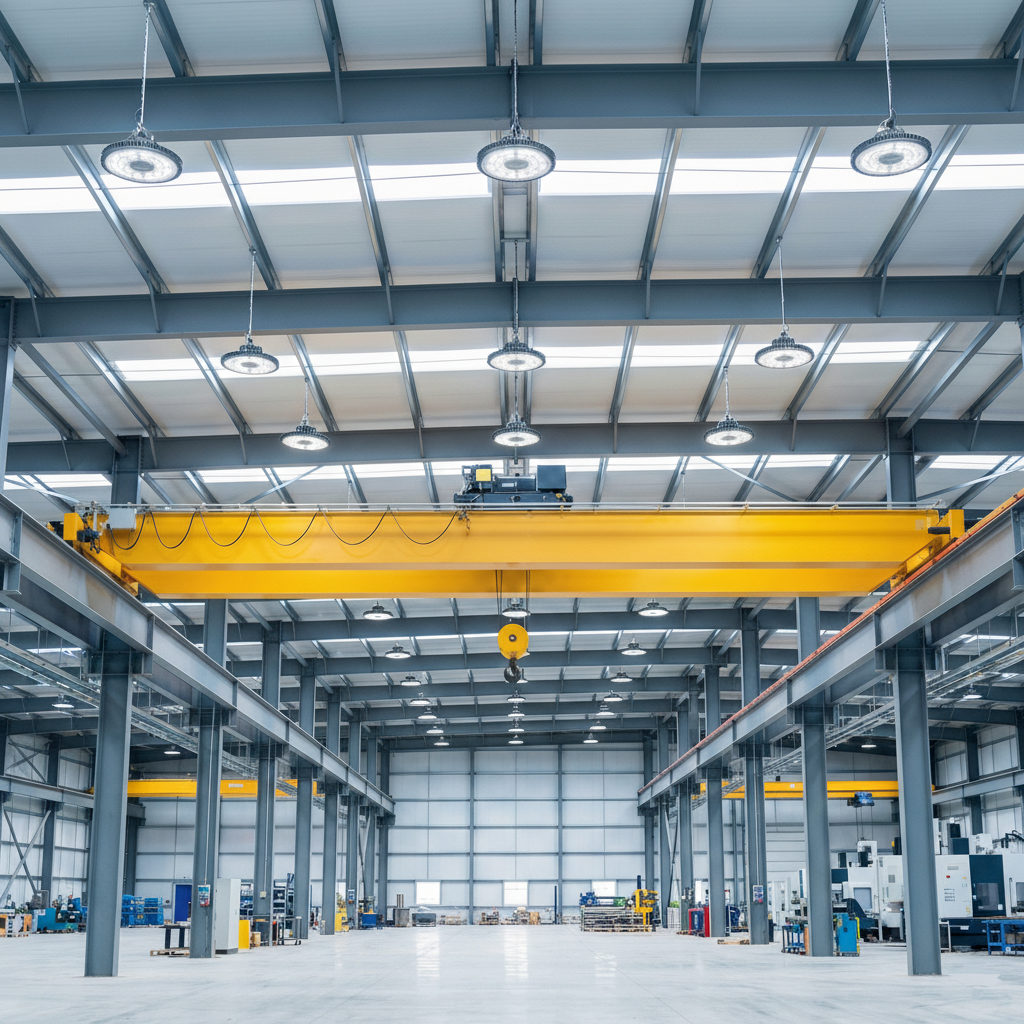

In high-heat industrial environments—foundries, heavy manufacturing, and high-ceiling warehouses—the difference between a lighting system that lasts five years and one that fails in eighteen months often comes down to material science. For facility managers and electrical contractors, the initial choice between aluminum glare shields and plastic reflectors is a primary driver of long-term Unified Glare Rating (UGR) compliance and total cost of ownership (TCO).
The technical conclusion is straightforward: Aluminum components, specifically cold-forged or machined 6063-T5 alloys, provide the thermal stability and optical permanence required for precision task areas. Plastic reflectors, while cost-effective upfront, are prone to thermal sagging and "milky" yellowing that can increase UGR values by 3 to 5 points within two years of continuous operation. This shift often pushes a facility out of compliance with safety standards like ANSI/IES RP-7-21 - Lighting Industrial Facilities.
The Physics of Reflector Degradation
In theory, high-performance plastics can withstand temperatures above 302°F (150°C). However, the reality on a factory floor is more complex. Fixtures mounted near heat-generating machinery or in unconditioned high-ceiling spaces are subject to localized thermal cycling.
Thermal Sagging and Optical Drift
Over 18 to 24 months of continuous operation (16+ hours per day), plastic reflectors often exhibit visible sagging. Even a minor dimensional change in the reflector's geometry alters the beam angle. This "optical drift" scatters light into the "glare zone" (typically 65° to 90° from the nadir), increasing veiling luminance.
The "Milky" Yellowing Effect
UV radiation from the LEDs, combined with ambient heat, triggers a chemical breakdown in many polycarbonate reflectors. This manifests as a yellowish, milky opacity.
- Impact on Efficiency: Yellowed reflectors absorb more light, reducing the Lumens per Watt (lm/W) efficacy.
- Impact on Visual Comfort: The milky surface becomes a secondary light source, creating a "glowing" reflector that increases perceived glare and reduces contrast for workers performing precision tasks.
Practitioner Observation: Based on patterns from customer support and warranty handling (not a controlled lab study), we frequently observe that UGR values in facilities using plastic reflectors increase significantly after the 5,000-hour mark. For a detailed look at selecting project-ready fixtures, refer to the 2026 Commercial & Industrial LED Lighting Outlook: The Guide to Project-Ready High Bays & Shop Lights.
Thermal Conductivity and Driver Longevity
Material choice is not just about the light you see; it’s about the heat you don’t see. Aluminum substrates and housings are critical for maintaining optimal thermal performance under harsh environmental conditions.
The Aluminum Advantage (6063-T5 Alloy)
Anodized 6063-T5 aluminum provides a superior balance of corrosion resistance and thermal conductivity. Unlike plastic, which acts as an insulator, an aluminum glare shield functions as an auxiliary heat sink.
- Thermal Path: Heat is drawn away from the LED board and the driver's thermal pad.
- Driver Protection: By keeping the internal ambient temperature lower, aluminum components can extend the lifespan of an LED driver by an estimated 15–20% in high-temperature environments (based on standard electrolytic capacitor life-curves).
Maximum Ambient Temperature Heuristics
When specifying fixtures, contractors should use a conservative heuristic: If a fixture utilizes plastic reflectors or housings, subtract at least 10°C (18°F) from the manufacturer's stated maximum ambient temperature rating to ensure long-term dimensional stability. Aluminum fixtures, conversely, typically maintain their ratings even at the upper limits of the UL 1598 - Luminaires safety standard.
UGR Compliance and Visual Productivity
The Unified Glare Rating (UGR) is a calculated value used to predict the likelihood of discomfort glare. In industrial settings, a UGR < 22 is often the target for general manufacturing, while precision assembly may require UGR < 19.
Aluminum glare shields are designed with precise cutoff angles that remain constant over the life of the fixture. Because aluminum does not yellow or sag, the photometric distribution remains locked to the original IES LM-63-19 Standard file used during the design phase.
Comparison: Aluminum vs. Plastic Over 5 Years
| Metric | Aluminum Glare Shield | Plastic Reflector | Rationale |
|---|---|---|---|
| Dimensional Stability | High (No sagging) | Moderate (Prone to heat sag) | Aluminum melting point >> Plastic glass transition temp |
| Color Consistency | Permanent (Anodized) | Variable (Yellowing) | UV and thermal degradation of polymers |
| UGR Drift | < ±0.5 points | +3.0 to +5.0 points | Change in geometry + surface scattering |
| Maintenance | Wipe-down only | May require replacement | Plastic becomes brittle and difficult to clean |
Economic Modeling: The ROI of Durability
Choosing aluminum is a strategic investment in Total Cost of Ownership. While a premium fixture with an aluminum shield may have a higher upfront cost, the long-term savings in energy, maintenance, and HVAC interactive effects are substantial.
Scenario Analysis: 20,000 Sq Ft Industrial Warehouse
We modeled a high-heat industrial scenario involving 50 high-bay fixtures operating 6,000 hours per year in an environment with ambient temperatures reaching 40°C (104°F).
| Parameter | Value | Unit | Rationale / Source |
|---|---|---|---|
| Legacy System | 458 | Watts | 400W Metal Halide + Ballast Loss |
| LED System (Aluminum) | 150 | Watts | High-efficiency DLC Premium fixture |
| Annual Operating Hours | 6,000 | Hours | 16h/day, 6 days/week |
| Electricity Rate | 0.18 | $/kWh | High-cost industrial region average |
| Maintenance Labor | 110 | $/hour | Union rate for lift-access work |
Quantitative Insights (The Numbers)
- Annual Energy Savings: ~$16,632 (Calculated as 308W saved per fixture × 50 fixtures × 6,000 hours).
- Annual Maintenance Savings: ~$5,812 (Based on avoided lamp replacements and labor).
- HVAC Cooling Credit: ~$762 (Estimated savings from reduced heat load in conditioned spaces).
- Payback Period: 1.6 Years (Includes initial cost minus typical utility rebates).
Logic Summary: Our analysis assumes a 10-year horizon. The "HVAC Cooling Credit" uses a 0.33 interactive factor, meaning for every 3 watts of lighting reduced, roughly 1 watt of cooling load is removed from the HVAC system.
Navigating Standards and Rebates
To maximize ROI, fixtures must meet specific performance and safety benchmarks. B2B buyers should prioritize products listed on the DesignLights Consortium (DLC) Qualified Products List (QPL).
DLC Premium vs. Standard
Fixtures with aluminum shields are more likely to achieve the DLC Premium designation. This tier requires higher efficacy (lm/W) and superior lumen maintenance (based on IES LM-80 data).
- Rebate Impact: Many utility companies offer $40–$60 more in rebates per fixture for DLC Premium compared to DLC Standard.
- Verification: Always cross-reference the manufacturer's DLC File Number on the official QPL database to ensure eligibility for utility incentives.
Safety and Compliance Artifacts
Before specifying, ensure the following documentation is available:
- LM-79 Report: The "performance report card" verifying total lumens and color temperature (CCT).
- UL/ETL Listing: Proof the fixture meets UL 1598 for safety.
- IES File: Required for lighting design software like AGi32 to ensure the layout meets ANSI/IES RP-7-21 light level requirements.
Advanced Control Integration
Modern industrial energy codes, such as ASHRAE Standard 90.1-2022 and California Title 24, mandate more than just efficient fixtures; they require intelligent controls.
Occupancy and Daylight Sensing
Integrating occupancy sensors can increase energy savings by up to 40–60% in storage areas with intermittent traffic.
- Material Synergy: Aluminum housings provide a more stable mounting platform for high-mount sensors, reducing vibration-induced false triggers.
- Dimming Compatibility: Ensure your LED drivers support 0-10V dimming, which is the industry standard for commercial control systems.
Decision Checklist for Facility Managers
When evaluating high-bay lighting for a long-term facility upgrade, use this checklist to distinguish "Value-Pro" equipment from consumer-grade alternatives:
- Shield Material: Is it 6063-T5 aluminum or a polymer? (Prioritize aluminum for high-heat areas).
- Certification: Is the product listed on the DLC QPL for rebates?
- Thermal Rating: Does the maximum ambient temperature rating match your environment (with a 10°C safety buffer)?
- Documentation: Are LM-79, LM-80, and IES files available for download?
- Warranty: Does the manufacturer offer a 5-year warranty with clear terms for industrial use?
By prioritizing verified performance and material durability over the lowest upfront price, facility managers can secure a lighting system that maintains its optical integrity and safety compliance for the duration of its service life.
Disclaimer: This article is for informational purposes only and does not constitute professional electrical engineering or financial advice. Lighting requirements vary by jurisdiction and specific facility application; always consult with a licensed electrical contractor or lighting professional before beginning a retrofit project.
